Yakovlev Yak-30

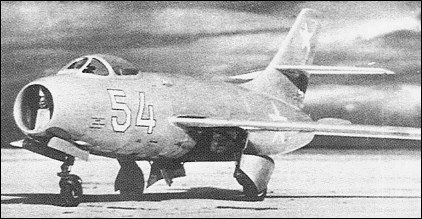

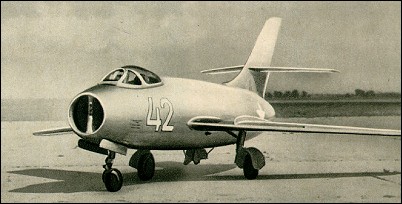

The Yakovlev OKB's response to the March 1946 requirement for a Rolls-Royce Derwent-powered Mach=0.9 "frontal" or general-purpose tactical fighter suitable for use from existing unpaved airfields was the Yak-30. Derived from the Yak-25 from which it differed primarily in having wings sweptback 35° at quarter chord, the Yak-30 retained the fuselage, tail surfaces and undercarriage of the earlier fighter fundamentally unchanged, together with the three-NR-23 cannon armament. Powered by a 1590kg RD-500 turbojet, the first of two Yak-30 prototypes was flown on 4 September 1948. The second prototype, the Yak-30D, which joined the flight test programme early in 1949, had a 38cm section inserted in the aft fuselage, revised mainwheel doors forming a large section of the fuselage skinning, Fowler-type flaps in place of split flaps, increased fuel and ammunition capacity, and changes to the oxygen system and radio equipment. The Yak-30D was also fitted with air brakes on the aft fuselage. Normal loaded weight (without external fuel) was increased by 110kg. Although the modifications introduced by the Yak-30D eradicated several shortcomings displayed by the first prototype, the first production deliveries of the superior MiG-15 were already taking place by the time that the improved version of the Yakovlev fighter entered flight test, and the results of NIl V-VS trials were, therefore, little more than academic.

Yakovlev Yak-30

Specification
 MODELYak-30
 CREW1
 WEIGHTS
  Take-off weight3330 kg7341 lb
  Empty weight2415 kg5324 lb
 DIMENSIONS
  Wingspan8.65 m28 ft 5 in
  Length8.58 m28 ft 2 in
  Wing area15.10 m2162.53 sq ft
 PERFORMANCE
  Max. speed1010 km/h628 mph
  Ceiling15000 m49200 ft
  Range w/max.fuel1720 km1069 miles

3-View

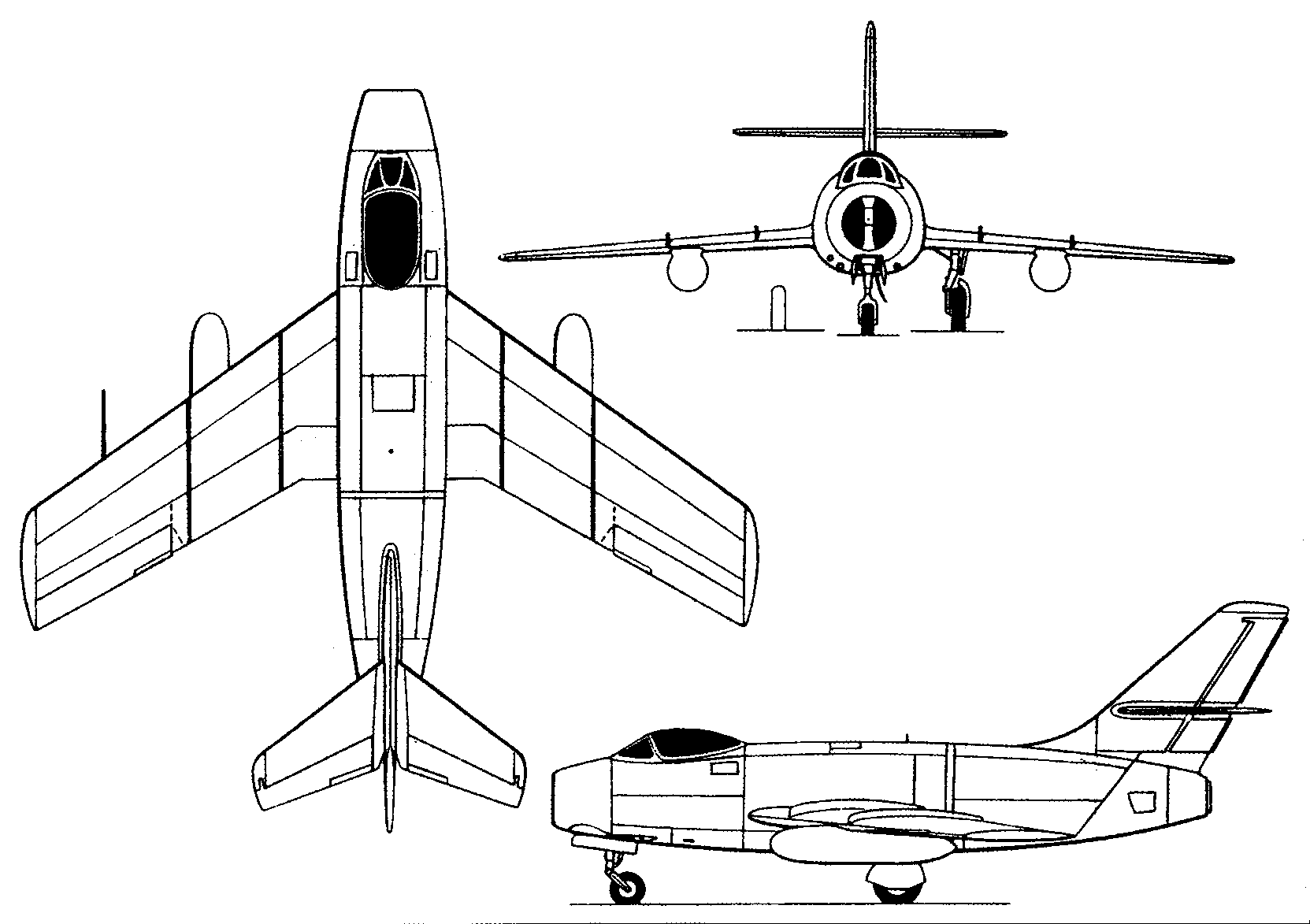

Yakovlev Yak-30A three-view drawing (1663 x 1173)

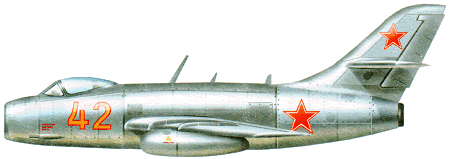

Yak-30D
