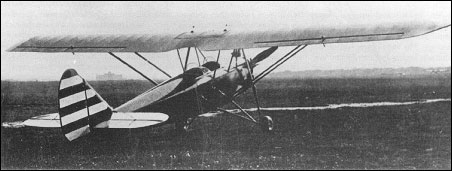

Yakovlev AIR-8

1934


	Virtual Aircraft Museum / USSR / Russia / Yakovlev

There is no text information for this aircraft at the moment.

3-View

A three-view drawing (750 x 728)

Specification

WEIGHTS
Take-off weight	675 kg	1488 lb
Empty weight	430 kg	948 lb
DIMENSIONS
Wingspan	11.1 m	36 ft 5 in
Length	7.1 m	23 ft 4 in
Wing area	18.0 m²	193.75 sq ft
PERFORMANCE
Max. speed	150 km/h	93 mph
Ceiling	4000 m	13100 ft
Range	750 km	466 miles

Comments

Barry, 14.06.2016 17:42

A development of the AIR - 4 with rearranged struts and low pressure tyres to meet VVS requirement. First flown M-23 engine which gave unacceptable vibration problems, it was later fitted with 60 h.p. Walter engine and later a 85 h.p Siemens, but no orders were forthcoming.
