Polikarpov ITP

1942

Back to the Virtual Aircraft Museum
  FIGHTERVirtual Aircraft Museum / USSR / Russia / Polikarpov

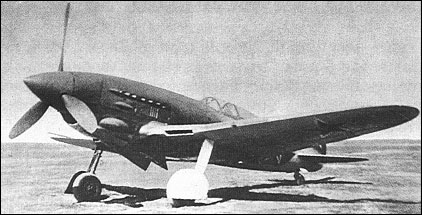

Polikarpov ITP

In 1941, the Polikarpov OKB began work on an Istrebitel' Tyazhely Pushechny - heavy cannon fighter - which was to mount a 37mm cannon between the cylinder banks of a 1,650hp Klimov M-107P 12- cylinder liquid-cooled Vee engine, and also carry two synchronised 20mm cannon. The aircraft was of mixed construction, the fuselage being a wooden monocoque and the wing of steel and dural. The first prototype, referred to as the M-1, was completed in October 1941, but difficulties with the engine delayed the initiation of flight testing until 23 February 1942. An M-107A replaced the M-107P late in 1942, but engine difficulties were still experienced, and a second prototype, the M-2, was completed with an AM-37 engine of 1,400hp with which it flew on 23 November 1943. The M-2 had an armament of three 20mm cannon and eight RS-82 unguided rocket projectiles, the engine eventually being replaced by an AM-39 of 1,700hp. Factory flight testing continued until June 1944 when the programme was abandoned.

3-View

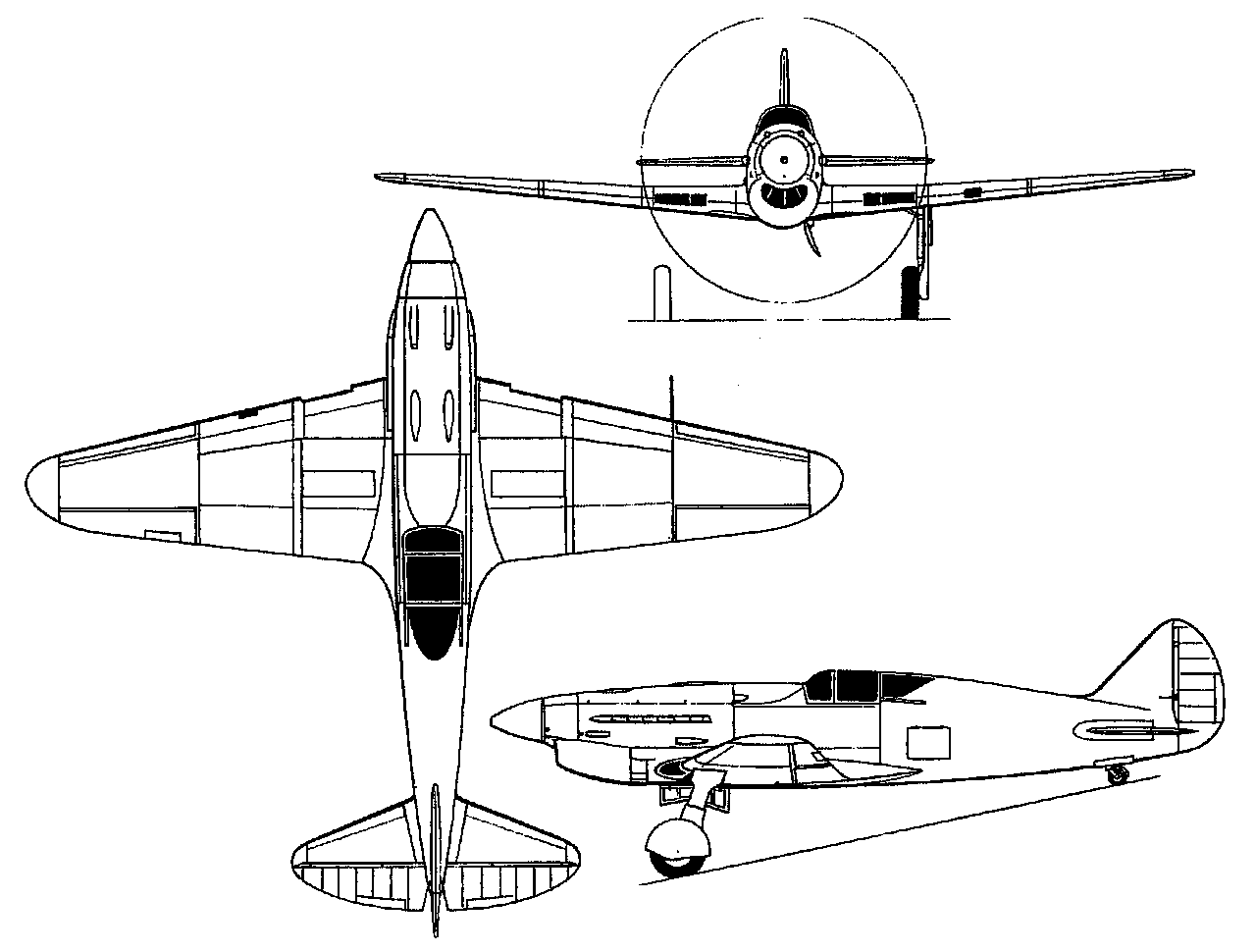

Polikarpov ITPA three-view drawing (1280 x 970)

Specification
 MODELM-1
 WEIGHTS
  Take-off weight3570 kg7871 lb
  Empty weight2960 kg6526 lb
 DIMENSIONS
  Wingspan10.00 m33 ft 10 in
  Length8.95 m29 ft 4 in
  Wing area16.45 m2177.07 sq ft
 PERFORMANCE
  Max. speed655 km/h407 mph
  Range1280 km795 miles
