| Essentially a slightly scaled-up two-seat derivative of
the I-3, the DI-2 was powered by a similar 750hp BMW
VI 7,3 engine and possessed a similar structure. Armament
consisted of two synchronised 7.62mm machine
guns and two guns of the same calibre on a Scarff ring
in the rear cockpit. Flight testing of the DI-2 commenced
in 1929, but early in the programme the horizontal
tail separated in flight as a result of flutter and
further development was discontinued.

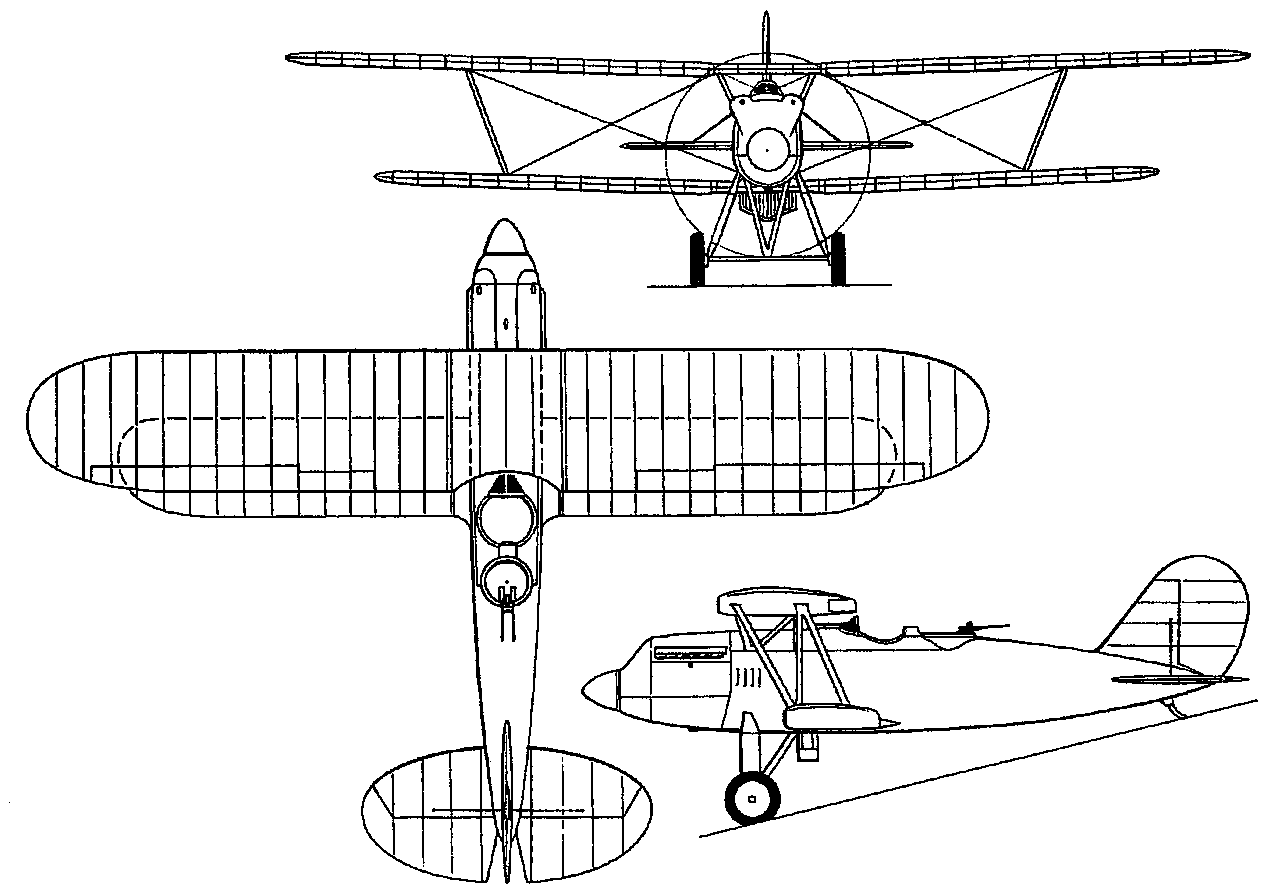

 | A three-view drawing (1280 x 896) |
WEIGHTS |
Take-off weight | 2122 kg | 4678 lb |
Empty weight | 1557 kg | 3433 lb |
DIMENSIONS |
Wingspan | 11.80 m | 39 ft 9 in |
Length | 8.20 m | 27 ft 11 in |
Wing area | 31.80 m2 | 342.29 sq ft |
PERFORMANCE |
Max. speed | 256 km/h | 159 mph |
Range | 510 km | 317 miles |
