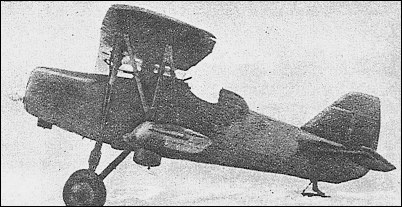

| Conceived to make use of new high-strength steels obtainable from Germany in the late 'twenties, the ANT-13 was a small unequal-span staggered biplane single-seat fighter. Utilising steel for the wing spars and the welded truss fuselage - the remainder of the structure being dural - the ANT-13 was fabric covered and powered by a 600hp Curtiss V-1570 Conqueror 12-cylinder water-cooled engine. Armament consisted of twin 7.62mm synchronised guns. Construction of the prototype, designated I-8, was threatened with cancellation in 1929 through the pressures of higher priority projects at the AGOS, but each worker donated 70 hours to completing the I-8, which was flown on 28 October 1930. Dubbed unofficially the Zhokei (Jockey), the fighter was the first aircraft to exceed 300km/h in the Soviet Union, but the decision not to licence manufacture the Conqueror engine militated against series production of the ANT-13.

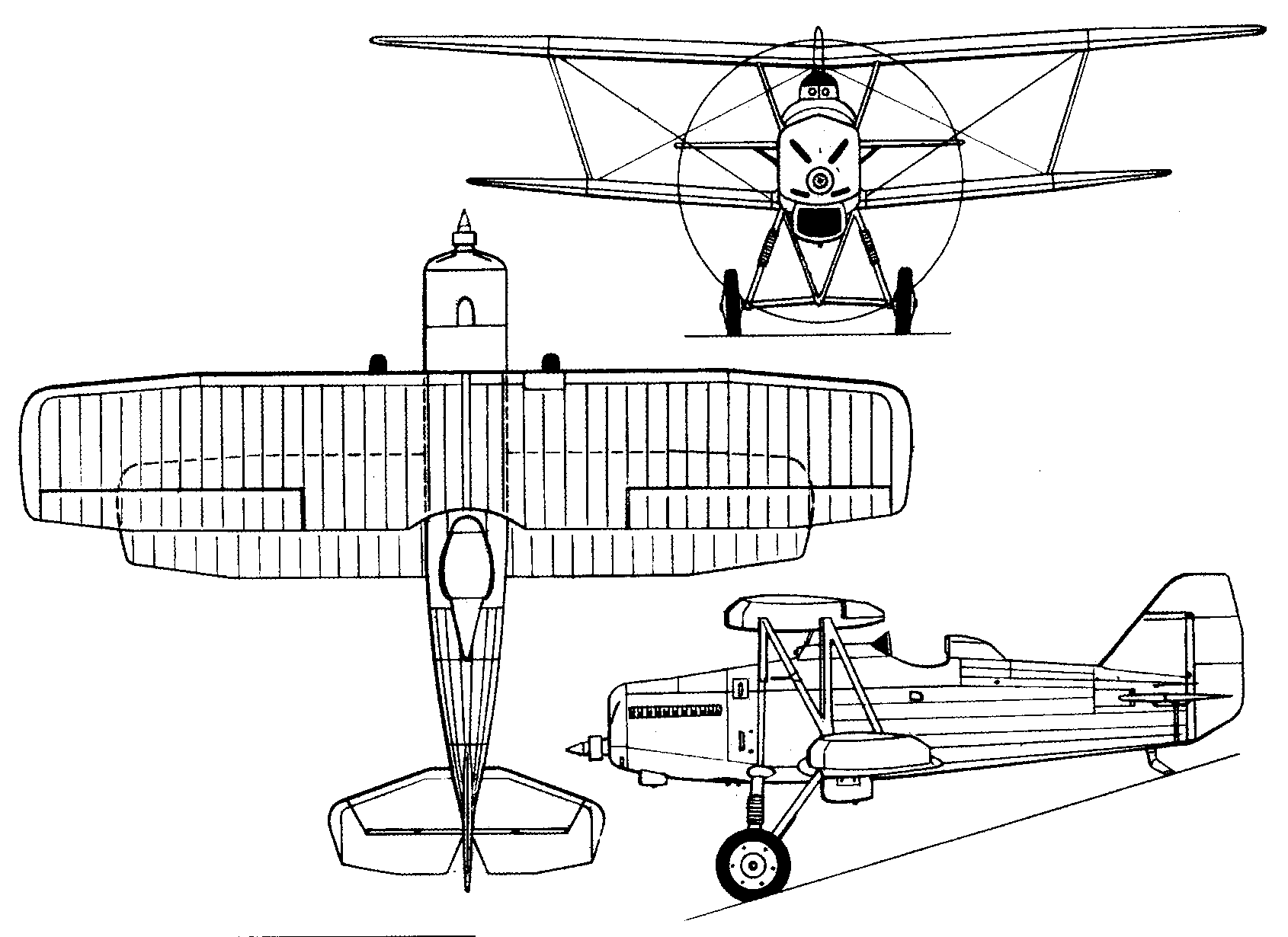

 | A three-view drawing (1690 x 1230) |
WEIGHTS |
Take-off weight | 1424 kg | 3139 lb |
Empty weight | 960 kg | 2116 lb |
DIMENSIONS |
Wingspan | 9.00 m | 30 ft 6 in |
PERFORMANCE |
Max. speed | 313 km/h | 194 mph |
Range | 440 km | 273 miles |
