Nakajima J5N Tenrai

Designed by Katsuji Nakamura and Kazuo Ohno and built to an 18-Shi specification for a high-speed single-seat interceptor fighter, the Nakajima J5N1 Tenrai (heavenly thunder) began flight tests in July 1944. A mid-wing monoplane with a raised canopy over the pilot's cockpit, it was powered by two 1484kW Nakajima NK9H Homare 21 radials and had a maximum speed of 597km/h. Armament comprised two 30mm and two 20mm cannon. Six aircraft were built, but as performance was disappointingly below specification no production resulted.

Nakajima J5N Tenrai

Specification
 MODELNakajima J5N "Tenrai"
 CREW1
 ENGINE2 x Nakajima NK9H "Homare-21", 1484kW
 PERFORMANCE
  Max. speed597 km/h371 mph
 ARMAMENT2 x 30mm cannons, 2 x 20mm cannons

3-View

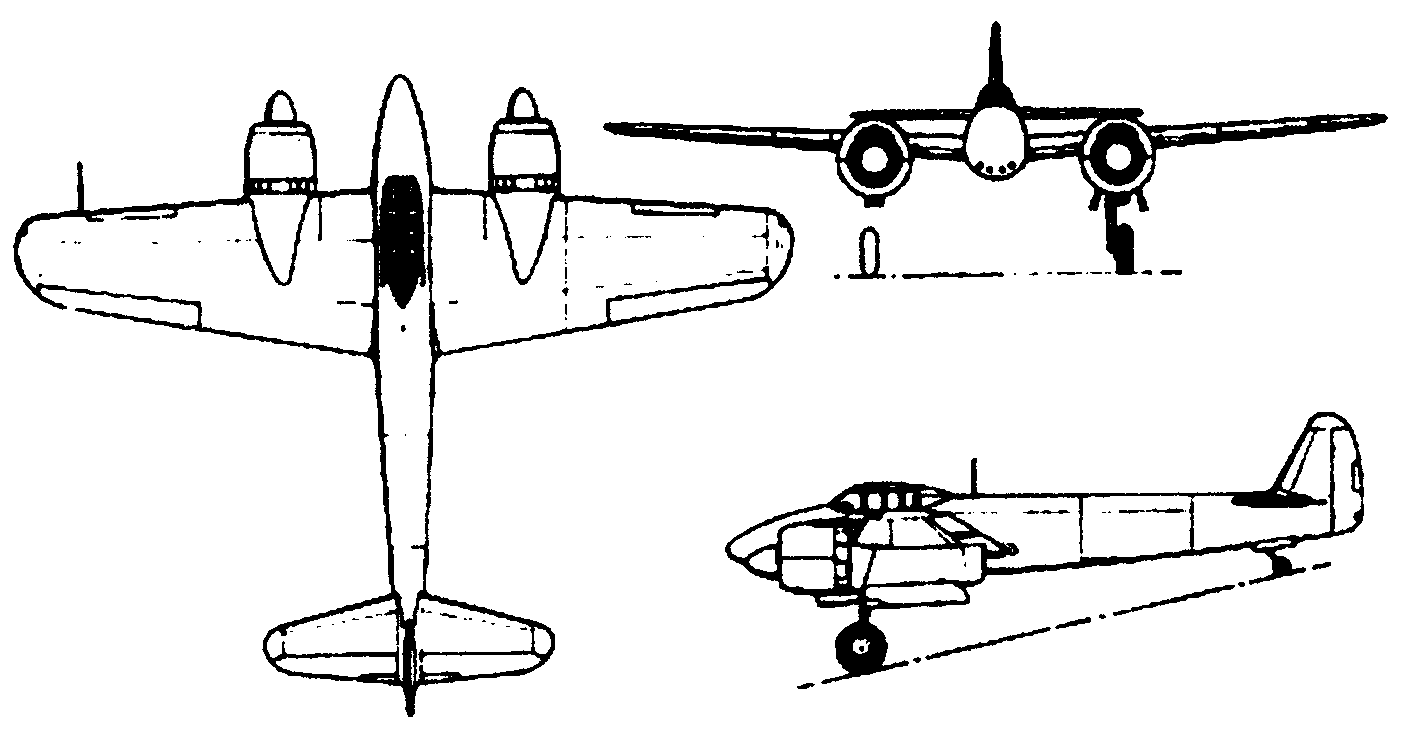

Nakajima J5N TenraiA three-view drawing (1412 x 736)
