Kyushu Q1W Tokai / LORNA

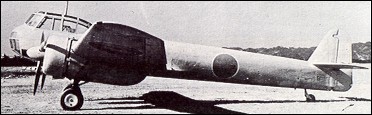

During 1942 Watanabe designed an ASW aircraft to meet an Imperial Japanese Navy requirement for a specialized aircraft in this category. Designated Kyushu Q1W, this was a cantilever mid/low-wing monoplane with retractable tailwheel landing gear, and powered by two Hitachi GK2C Amakaze 31 radial engines. Operated by a crew of three, the Q1W was planned to use an advanced search radar, but this failed to materialize and instead the Q1W had to make do with an earlier and somewhat ineffective radar complemented by MAD (magnetic anomaly detection) equipment. First flown in September 1943, the Q1W1 was ordered into production in early 1944 as the Navy Patrol Plane Tokai (eastern sea), later allocated the Allied codename 'Lorna'. It proved to be unsuccessful in operational service, too slow and too vulnerable to attack by Allied fighters, and only about 150 had been built by the time the Pacific war ended.

Kyushu Q1W Tokai / LORNA

Specification
 MODELQ1W1
 CREW3
 ENGINE2 x Hitachi GK2C "Amakaze-31", 460kW
 WEIGHTS
  Take-off weight4800-5318 kg10582 - 11724 lb
  Empty weight3102 kg6839 lb
 DIMENSIONS
  Wingspan16 m53 ft 6 in
  Length12.1 m40 ft 8 in
  Height4.1 m13 ft 5 in
  Wing area38.2 m2411.18 sq ft
 PERFORMANCE
  Max. speed320 km/h199 mph
  Cruise speed240 km/h149 mph
  Ceiling4490 m14750 ft
  Range1340 km833 miles
 ARMAMENT1-2 20mm cannons, 7.7mm machine-guns, 500kg of bombs

3-View

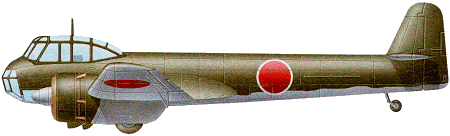

Kyushu Q1W Tokai / LORNAA three-view drawing (752 x 947)
