Kokusai Ki-59 THERESA

1939

Back to the Virtual Aircraft Museum
  TRANSPORTVirtual Aircraft Museum / Japan / Kokusai

Kokusai Ki-59 THERESA

The first prototype flew in June 1939.

Kokusai Ki-59 THERESA

Specification
 MODELKi-59
 ENGINE2 x Hitachi Ha-13a, 380kW
 WEIGHTS
  Take-off weight4120-4240 kg9083 - 9348 lb
  Empty weight2880 kg6349 lb
 DIMENSIONS
  Wingspan17 m56 ft 9 in
  Length12.5 m41 ft 0 in
  Height3.05 m10 ft 0 in
  Wing area38.4 m2413.33 sq ft
 PERFORMANCE
  Max. speed300 km/h186 mph

3-View

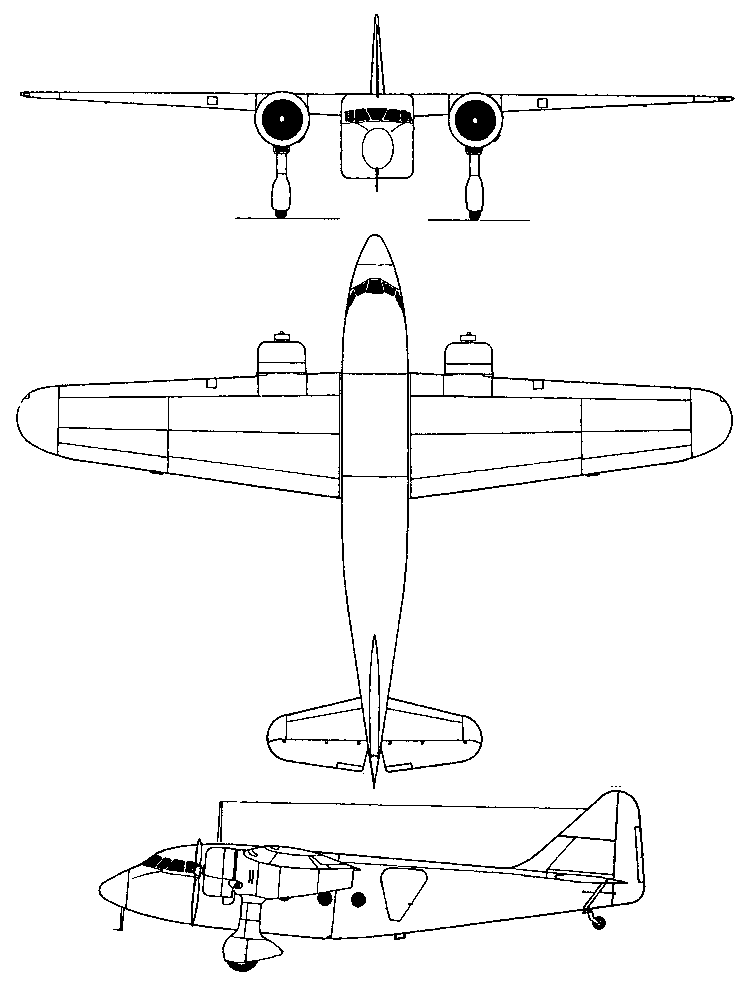

Kokusai Ki-59 THERESAA three-view drawing (750 x 985)

Kokusai Ki-59 THERESA

Comments
Barry, 04.02.2016 15:33

Based on the Nippon Kokusai Koko Kyogo KK built Teradako-ken TK3,which failed to meet it's design criteria, the Ki 59 first flew in 1941. Designed capacity was 8 passengers and some 59 were built with a few going to Manchukuo National Airlines. he plane did not meet expectations and was replaced by the more capable Tachikawa Ki54.

reply

malu, 18.06.2011 12:17

Hamilcar's first flight was March 1942.

reply

y.k, 02.03.2011 14:02

Debt Man
Hamilcar's first flight was March 1942.
Ki59 was 1940.

reply

DebtMan, e-mail, 01.10.2010 22:26

Japan was built unlicensed GA Hamilcars?

reply
