Savoia-Marchetti S.M.84

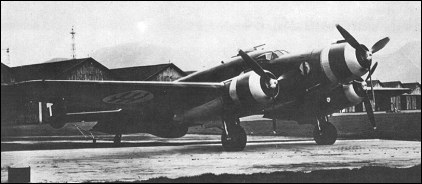

When it was realized that the S.79 could no longer measure up to foreign medium bombers, SIAI Marchetti designed a version initially called the SM.79bis and then SM.84. With respect to the S.79, the SM.84 featured a different and more rational internal fuselage design and had twin fins to improve the gunner's field of fire to the rear. But the aircraft suffered from various difficulties and never equalled the brilliant performance of its predecessor.

3-View
Savoia-Marchetti S.M.84A three-view drawing (1000 x 580)

Specification
 MODELSM.84
 ENGINE2 x 746kW Piaggio P.XI piston radials
 WEIGHTS
  Take-off weight13288 kg29295 lb
 DIMENSIONS
  Wingspan21.13 m69 ft 4 in
  Length17.93 m59 ft 10 in
  Height4.59 m15 ft 1 in
  Wing area61 m2656.60 sq ft
 PERFORMANCE
  Max. speed432 km/h268 mph
  Ceiling7900 m25900 ft
  Range1830 km1137 miles
 ARMAMENT4 x 12.7m machine-guns, 1600kg of bombs

Comments
carlo, e-mail, 06.06.2016 14:55

yes was a tri-motor if not an error the central one had rotating in different ways off the other two

reply

John, e-mail, 27.03.2008 04:03

The engine section says 2 x 746kW Piaggio P.XI piston radials, but this looks like a trimotor to me- am I missing something?

reply

rick, e-mail, 11.11.2007 08:01

teh plane was not good at all

reply
