| The first prototype flew in July 19, 1926.

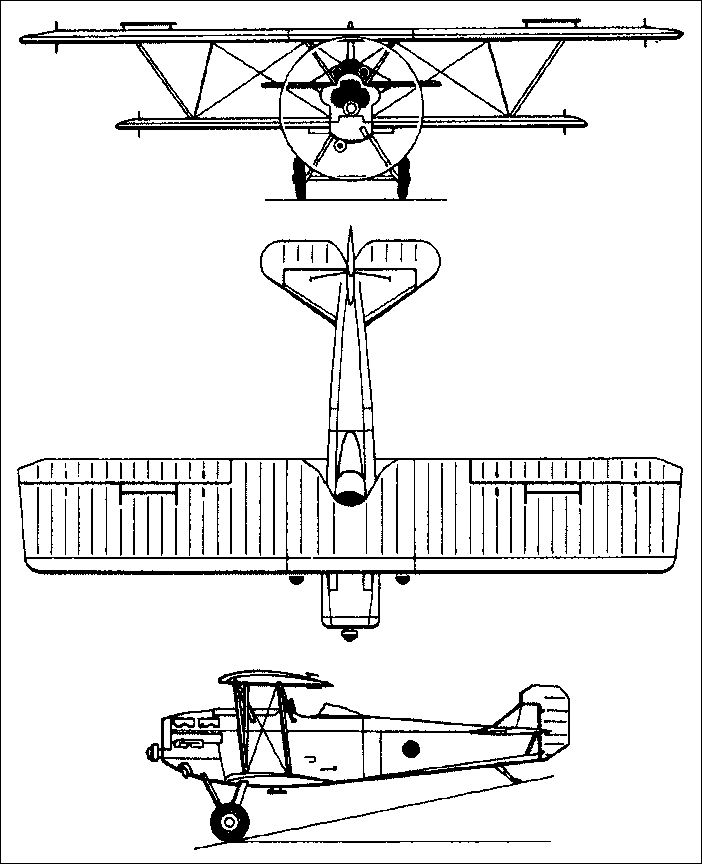

 | A three-view drawing (702 x 864) |
CREW | 1 |
ENGINE | 1 x FIAT A.20, 295kW |
WEIGHTS |
Take-off weight | 1400 kg | 3086 lb |
Empty weight | 940 kg | 2072 lb |
DIMENSIONS |
Wingspan | 9.8 m | 32 ft 2 in |
Length | 6.6 m | 22 ft 8 in |
Height | 2.7 m | 9 ft 10 in |
Wing area | 25.8 m2 | 277.71 sq ft |
PERFORMANCE |
Max. speed | 280 km/h | 174 mph |
Ceiling | 7900 m | 25900 ft |
Range w/max.fuel | 600 km | 373 miles |
ARMAMENT | 4 machine-guns |
Barry, 31.05.2016 15:46 Designed by Celestino Rosatelli the CR.20 was a successful stepping stone to the later CR.30 /32 and CR.42 fighters. Some 735 were produced in four different models flying with 8 different air arms. reply |
