Fokker F.14

1929

Back to the Virtual Aircraft Museum
  PASSENGERVirtual Aircraft Museum / Holland / Fokker

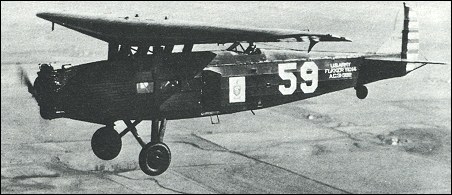

Fokker F.14

The Fokker F.XIV of 1929 was built at the New Jersey factory as a seven/nine-passenger transport. Fuselage and wings were of normal Fokker design, although the upper fuselage decking was of corrugated duralumin. The major differences between this and other Fokker transports was that it had a parasol-type wing carried on struts above the fuselage, and a pilot's open cockpit behind the passenger cabin and beneath a cut-out in the wing trailing edge.

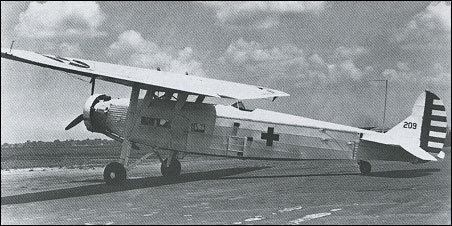

Fokker Y1C-15 (army version of F.14)

Specification
 PASSENGERS9
 ENGINE1 x Wright R-1750-3 radial piston engine, 391kW
 WEIGHTS
  Take-off weight3266 kg7200 lb
  Empty weight1971 kg4345 lb
 DIMENSIONS
  Wingspan18.11 m59 ft 5 in
  Length13.18 m43 ft 3 in
  Height3.76 m12 ft 4 in
  Wing area51.19 m2551.00 sq ft
 PERFORMANCE
  Cruise speed187 km/h116 mph
  Ceiling4420 m14500 ft
  Range1110 km690 miles

Comments
Al Wiese, e-mail, 27.10.2011 22:21

I have pictures of Fokker F-14 At the WAE airport, Vail field. Tail No. NC-129-M. If more details are need EMail or call 479-253-9193

reply

John D. Bybee, e-mail, 23.02.2008 17:13

Former WAE /TWA F-14, NC331N was loaned by TWA's Jack Frye to Byrd's 2nd expedition to Antarctica. This F-14 crashed on takeoff at Little America on March 14, 1934. Ike Schlossback commanding. I have a scan of a photo of NC331N, from David Burke's book MOMENTS OF TERROR

reply

Jim Reynolds, e-mail, 10.10.2020 John D. Bybee

John;

I'm a former TWA employee and wanted to now if you can send me a copy via email of your TWA Fokker F-14 for my collection.

Thanks, Jim

reply
