Rohrbach Ro V Rocco

1927

Back to the Virtual Aircraft Museum
  PASSENGER FLYING BOATVirtual Aircraft Museum / Germany / Rohrbach

Rohrbach Ro V Rocco

One aircraft was built in 1927.

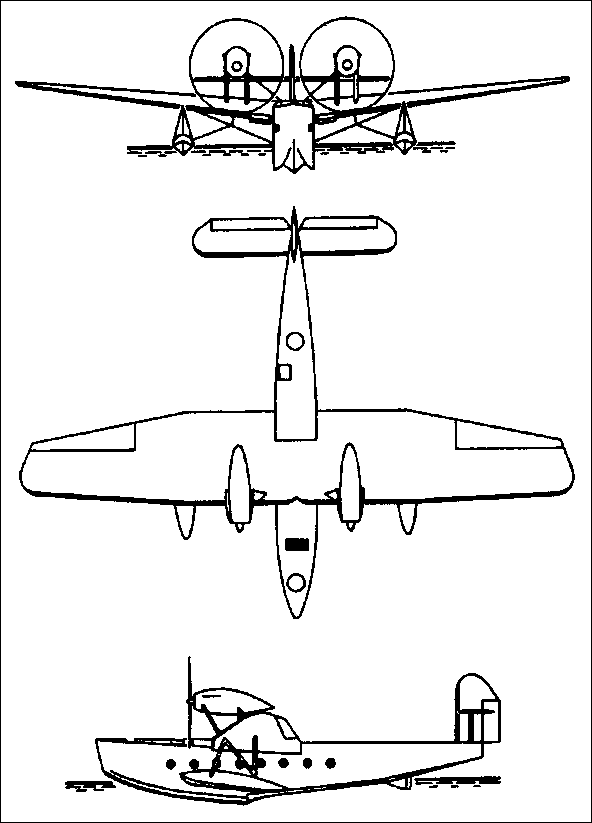

3-View
Rohrbach Ro V RoccoA three-view drawing (592 x 823)

Specification
 MODELRo V "Rocco"
 CREW3
 PASSENGERS10
 ENGINE2 x Rolls-Royce "Condor", 480kW
 WEIGHTS
  Take-off weight9600 kg21164 lb
  Empty weight5990 kg13206 lb
 DIMENSIONS
  Wingspan26.0 m85 ft 4 in
  Length19.3 m63 ft 4 in
  Height6.7 m22 ft 0 in
  Wing area94.0 m21011.81 sq ft
 PERFORMANCE
  Max. speed220 km/h137 mph
  Cruise speed168 km/h104 mph
  Ceiling3150 m10350 ft
  Range w/max.fuel2400 km1491 miles

Comments
Barry, 13.01.2010 14:22

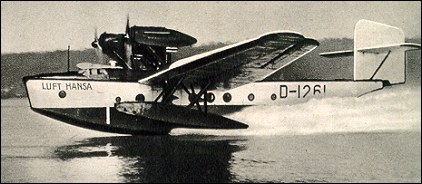

Werk Nr 26 was flown by Severa GmbH for comparison flights with the Dornier Super Wal then latterly as a seaplane trainer. It was used by Lufthansa between 21st May and 15th June 1928 for 47 flights between Travemunde and Oslo via Copenhagen and Gothenburg after this it was delivered to the Erpobungstelle at Travemunde.

reply
