Messerschmitt Me 309

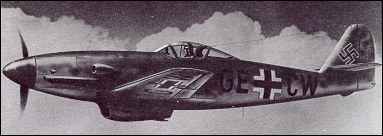

The Me 309 was designed as a replacement for the Bf 109, already in 1940, but was assigned a low priority. The Me 309 was advanced in concept, with tricycle landing gear, a pressurized concept, and cannon armament. The Me 309 was never satisfactory, and especially the nosewheel was a weak point: many photographs show the Me 309 with its nose in the ground. Four were built before the RLM cancelled the project.

Messerschmitt Me 309

3-View
Messerschmitt Me 309A three-view drawing (1700 x 1145)
