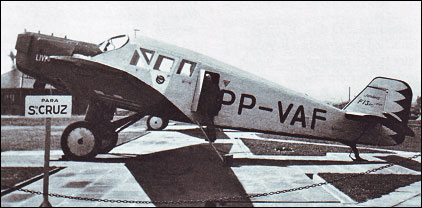

Junkers F 13

The Junkers F13 was a post-World War I design, purpose-built for commercial purposes, and also the first all-metal airliner. Unusually for its era, it was a monoplane. Over 320 examples of this historic aircraft were built over 20 years up until 1932, with Deutsche Luft Hansa a significant purchaser (of 72 examples). Some variants were equipped with skis or floats, and F13s were still in service up until World War II - in all more than 70 variants were fielded. This rugged, heavily braced aircraft with its trademark jWkers corrugated metal skin helped to develop air transport services in many parts of Europe and beyond, including South America. Specifications apply to F13a.

Specification
 CREW2
 PASSENGERS4
 ENGINE1 x 265hp BMW III 6-cylinder in-line piston engine
 WEIGHTS
  Take-off weight2703 kg5959 lb
 DIMENSIONS
  Wingspan17.75 m58 ft 3 in
  Length9.60 m32 ft 6 in
  Height3.61 m12 ft 10 in
 PERFORMANCE
  Max. speed177 km/h110 mph
  Cruise speed140 km/h87 mph
  Range648 km403 miles
