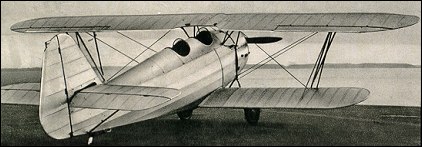

Heinkel He 63

The first prototype flew in 1932. There were two modifications: the land based He-63L and the float plane He-63W.

3-View

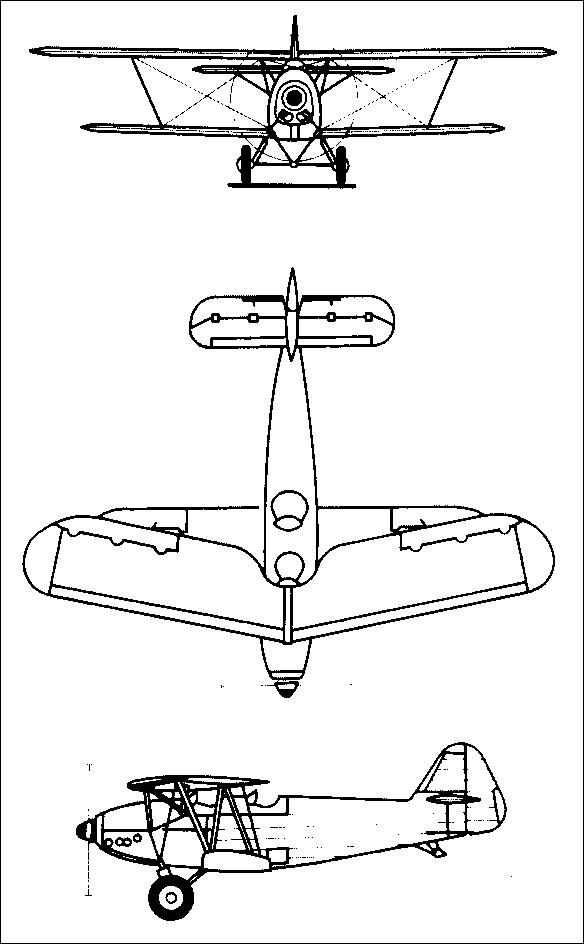

Heinkel He 63A three-view drawing (584 x 944)

Specification
 MODELHe-63
 CREW2
 ENGINE1 x As-10Ca, 160kW
 DIMENSIONS
  Wingspan10.8/8.0 m35 ft 5 in / 26 ft 3 in
  Length8.2 m27 ft 11 in
  Height2.7 m9 ft 10 in
  Wing area24.4 m2262.64 sq ft
 PERFORMANCE
  Max. speed200 km/h124 mph
  Cruise speed190 km/h118 mph
  Ceiling3900 m12800 ft
  Range w/max.fuel1100 km684 miles
 ARMAMENT1 machine-guns
