Heinkel He 176

1939

Back to the Virtual Aircraft Museum
  ROCKET PLANEVirtual Aircraft Museum / Germany / Heinkel

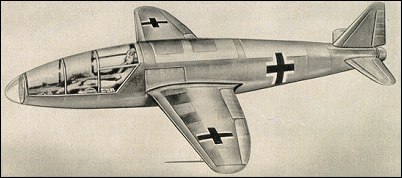

Heinkel He 176

Single-seat experimental aeroplane powered by a 5.89kN Walter HWK-R1 203 rocket motor. First flown on 20 June 1939.

Heinkel He 176

Specification
 MODELHe-176
 CREW1
 ENGINE1 x Walter HWK-RI203, 5.9kN
 WEIGHTS
  Take-off weight1620 kg3572 lb
  Empty weight900 kg1984 lb
 DIMENSIONS
  Wingspan5.0 m16 ft 5 in
  Length5.2 m17 ft 1 in
  Height1.4 m5 ft 7 in
  Wing area5.4 m258.13 sq ft
 PERFORMANCE
  Max. speed750 km/h466 mph
  Cruise speed700 km/h435 mph
  Ceiling9000 m29550 ft
  Range95 km59 miles

3-View

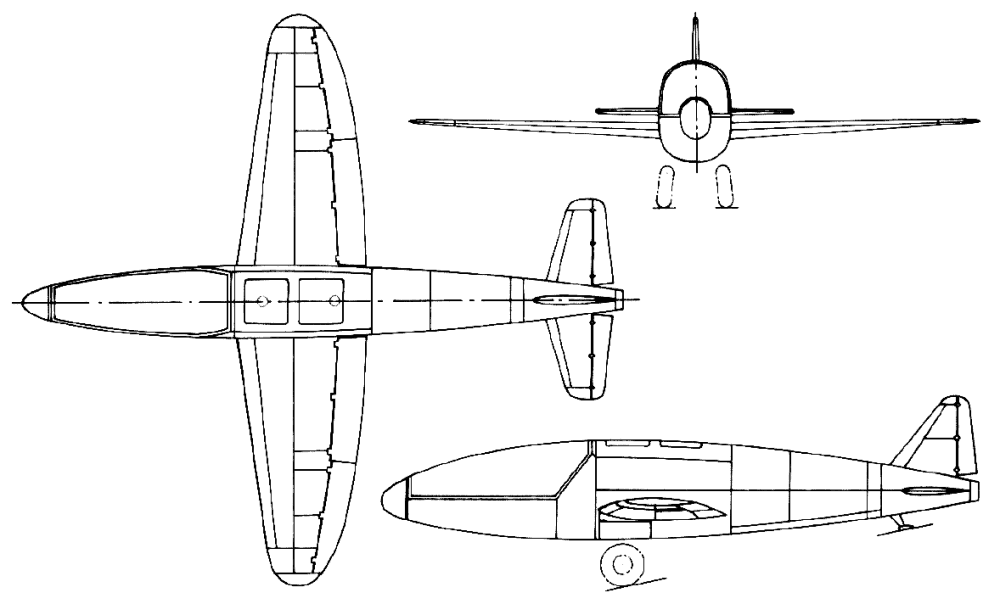

Heinkel He 176A three-view drawing (1000 x 604)

Comments
Vahe David Demirjian, e-mail, 05.08.2020 01:21

The drawings and illustrations of the He 176 on this page are inaccurate. Photos and drawings of the He 176 V1 are provided in Koos (1994), and they show a plane with a retractable main gear and fixed nose gear, but also an advanced, totally enclosed cockpit, with a frameless single-piece clear nose.

Volker Koos, Heinkel He 176 â€" Dichtung und Wahrheit, Jet&Prop 1 /94 p. 17â€"21
