Grob GF 200

1991

Back to the Virtual Aircraft Museum
  FIGHTERVirtual Aircraft Museum / Germany / Grob

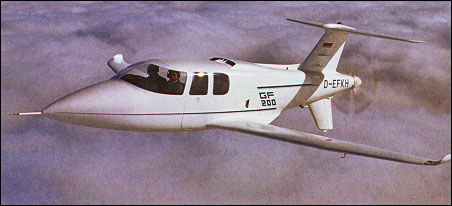

Grob GF 200

The GF 200 differs greatly from othe Grob designs in having its single pusher engine mounted in the rear of the fuselage, serving to reduce noise. Other features include winglets, a T tail and a retractable undercarriage.

Specification
 CREW2
 PASSENGERS4
 ENGINE1 x 233kW Teledyne Continental TSIOL550 turbocharged flat-six piston engine
 WEIGHTS
  Take-off weight1600 kg3527 lb
 DIMENSIONS
  Wingspan11.00 m36 ft 1 in
  Length8.70 m29 ft 7 in
  Height3.42 m11 ft 3 in
 PERFORMANCE
  Cruise speed370 km/h230 mph
  Ceiling7625 m25000 ft
  Range1850 km1150 miles

Comments
juankuan, 18.06.2011 07:10

Nach dem schweren Unfall vor zwei Jahren, bei dem der Chef-Testpilot ums Leben kam, gehts der Firma schlecht. Schade, die Segelflugzeuge sind klasse gewesen!

reply

Dudley Fort, e-mail, 07.03.2010 12:54

The gliders are excellent but this plane almost bankrupted the company. see the poor translation below.

Unfortunately is the nearly broke. To the heavy accident before two years, in which the chief test pilot died, ' s of the company goes badly. Unfortunate, the gliders were class!

reply

Danger Al, e-mail, 18.01.2010 19:07

You can now visit this machine at Munich's great Deutches Museum. Its recip engine tended to overheat, so more cooling development was needed. It quite a big machine for a four-seater. Had a deep stall problem at full flap: test pilot Ulli Schell could recover by dropping a wing to slip out of the stall - or retract flaps. vertical fin originally had bother upper & lower rudders, but eventually went to lower only. Lack of countering prop wash left the engine torque as dominant feature, thus demanding roll trim changes with airspeed changes.

reply

Volker Steiger, 01.10.2008 17:44

Leider sind die fast pleite. Nach dem schweren Unfall vor zwei Jahren, bei dem der Chef-Testpilot ums Leben kam, gehts der Firma schlecht. Schade, die Segelflugzeuge sind klasse gewesen!

reply
