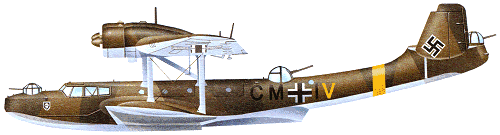

Dornier Do 24

The Do 24 flying-boat was designed before World War II and series built to order of the Dutch government for use in the East Indies by the Naval Air Service. With licence production in Holland, a total of 37 were operated as Do 24K. From May 1940 Do 24 on the production lines were completed under German occupation and these - together with later Do 24T and French-built examples - were used by the Luftwaffe as reconnaissance and search-and-rescue aircraft.

The Do 24 was also built under licence in Spain, examples remaining in service into the 1960s.

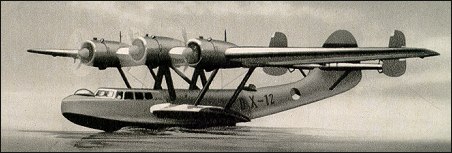

Dornier Do 24

Specification
 CREW6
 ENGINE3 x BMW "Bramo 323", 735kW
 WEIGHTS
  Take-off weight18400 kg40565 lb
  Empty weight10600 kg23369 lb
 DIMENSIONS
  Wingspan27.0 m89 ft 7 in
  Length21.9 m72 ft 10 in
  Height5.8 m19 ft 0 in
  Wing area108.0 m21162.50 sq ft
 PERFORMANCE
  Max. speed340 km/h211 mph
  Cruise speed255 km/h158 mph
  Ceiling5900 m19350 ft
  Range w/max.fuel4800 km2983 miles
  Range w/max payload2400 km1491 miles
 ARMAMENT4 machine-guns, 1 x 30mm cannon, 600kg of bombs

Dornier Do 24

Comments
jadond, 18.06.2011 10:47

Dutch East Indies as their crews joined the Allied retreat to Australia, They served through World War Two in the Pacific

reply

lxbfYeaa, e-mail, 14.03.2024 jadond

20

reply

john christie, e-mail, 09.04.2010 17:44

On holiday in Majorca 1969 I saw flying boats patrolling the coast. I believe they were based in Puerto Pollensa. Was it these flying boats?

reply

Barry, 12.01.2010 14:15

A development of the Do24 was planned. This was the Do318 which was a larger more capable aircraft of similar design. Two models were planned an Air Sea Rescue type capable of rescuing eight people and a larger longer range reconnaissance model.

reply

richard, e-mail, 18.07.2008 07:11

I'm assuming that one or more Dornier DO 24 were used to evacuate refugees from the Netherlands East Indies in 1942. Does anybody know how many passengers each of these planes could carry?

reply

Adrian B, e-mail, 17.05.2008 19:07

Some of the RNelAF Do 24's found their way into the RAAF after the fall of the Dutch East Indies as their crews joined the Allied retreat to Australia, They served through World War Two in the Pacific

reply

Dr. Gerhard Kriechbaum, e-mail, 19.04.2008 16:16

From 1980 through 1984 the amphibian technology demonstrator, known as the Do 24 ATT (Amphibischer Technologie-Traeger) was developed and flight tested by Dornier. It incorporated the overhauled hull and empenage from the last flying Do 24 T seaplane which was returned from Spain in 1971.
The Do 24 ATT had a new wing, 6 new torboprop engines, a nose wheel landing gear and all new systems.
As program manager of this program I have many pictures and would be happy to answer any questions.

reply

STEVEN, e-mail, 26.05.2007 18:48

DID YOU KNOW THAT ONE DORNIER DO 24 T WERE LANDING AT THE BERLIN LAKE BY MAY 1945 TO FLOWN HITLER S LAST TESTIMONIAL, BUT THE PILOT REJECTED THE COURIER AND PICKED UP 10 WOUNDED SOLDIER AND FLOWN THEM BACK COPENHAGEN

reply

JACK C. KINNEY, e-mail, 28.03.2007 03:43

Ref Air & Space Magazine October November 2005
Page 72 of this issue had a fantistic picture or the
Dornier Do 24 a Tri-motor amphibian designed in the 1930's by Claudis Dornier. Does anyone out there know if reprents of this picture are available? Thanks for any help you may lend
