Blohm und Voss Ha.155

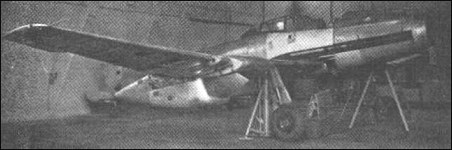

Development of the Me-155. The Bv 155 was an ugly, but effective high-altitude fighter with a long-span laminar flow wing and a turbosupercharged engine. The V1, V2 and V3 prototypes were outwardly very different, mainly by relocation of the radiators. The final Bv 155C had the cooling systems under the nose. A contract for 30 production aircraft was issued in the finals days of WWII. Never flown.

Blohm und Voss Ha.155

Specification
 MODELBV.155b
 CREW1
 ENGINE1 x 1610hp Daimler-Benz DB-603a
 WEIGHTS
  Take-off weight6020 kg13272 lb
  Empty weight4870 kg10737 lb
 DIMENSIONS
  Wingspan20.50 m67 ft 3 in
  Length12.00 m39 ft 4 in
  Height2.97 m10 ft 9 in
  Wing area37.70 m2405.80 sq ft
 PERFORMANCE
  Ceiling17000 m55750 ft
  Rate of climb690 m/min2250 ft/min
  Range585 km364 miles

3-View

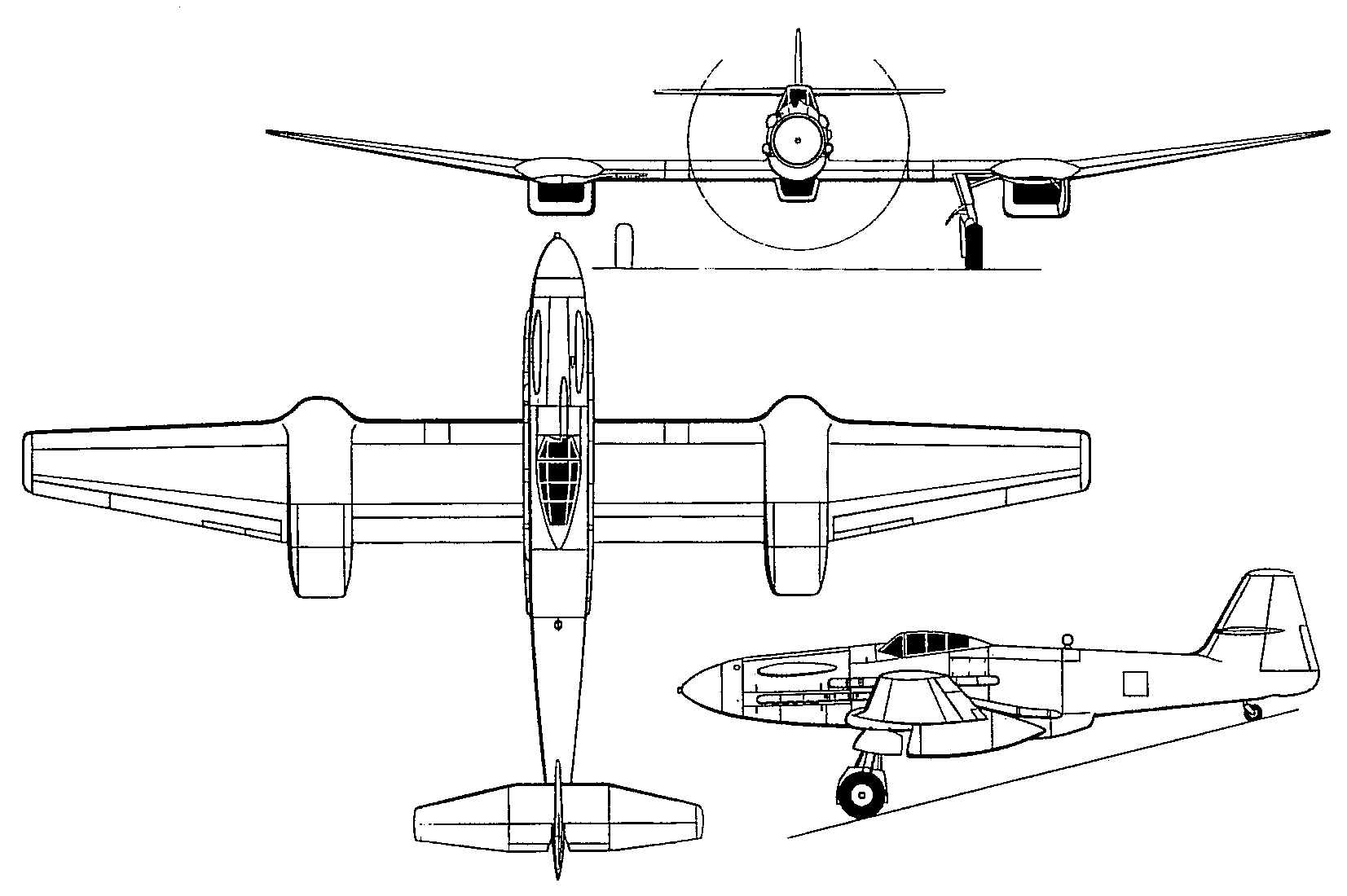

Blohm und Voss Ha.155A three-view drawing (1653 x 1100)

Comments
Francis Maigné, e-mail, 21.12.2009 18:10

Bv 155
Monomoteur d'interception à haute altitude, monoplace sous verrière à vision totale, monoplan voilure basse cantilever droite, monodérive, empennage classique cantilever, train d'atterrissage escamotable, le train principal vers l'intérieur dans l'intrados de la voilure, roulette de queue vers l'arrière, radiateurs plaqués à l'intrados à mi-envergure ( V1), et à l'extrados ( V2, V3). Construction entièrement métallique. 1 moteur tractif de 12 cylindres inversés Daimler Benz DB 603 de 1610 Cv avec turbocompresseur TKL 15, hélice tripale métallique à pas variable, E: 20,30 m, L: 11,90 m, H: 2,98 m, Sa: 39,00 m², Pv: 4868 Kg, Ptc: 5000 Kg, C /a: 141,025 Kg /m², P /p: 3,105 Kg /Cv, Vm: 690 Kmh, Pl: 16950 m, Ra: 1440 Km, Armement: 1 canon MK 108 de 30 m /m et 2 canons MG 151 /20 de 20 m /m. 1er vol: 01 /09 /1944 (V1), Février 1945 (V2) , 3 prototypes.
