SNCAC (Farman) NC.470, NC.471

1937

Back to the Virtual Aircraft Museum
  FLOATPLANEVirtual Aircraft Museum / France / SNCAC

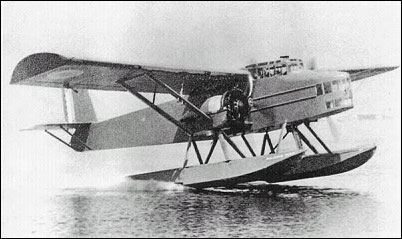

SNCAC (Farman) NC.470, NC.471

Floatplane trainer; some were used for reconaissance in 1939. The NC.470 was initially developed by Farman as the F.470. Germany captured 14 in 1942. Approx 24 built.

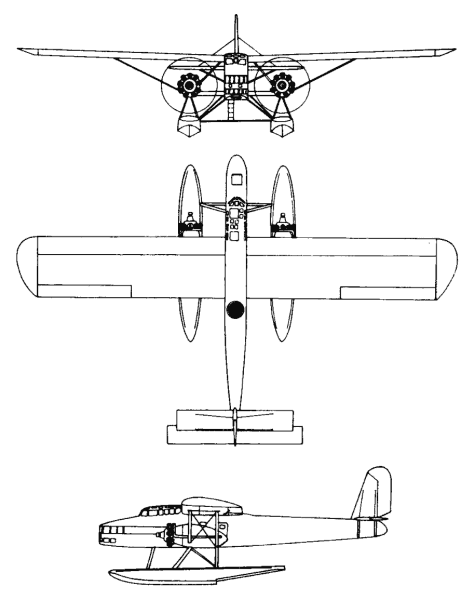

3-View
SNCAC (Farman) NC.470, NC.471A three-view drawing (475 x 600)

Specification
 MODELNC.471
 CREW6
 ENGINE2 x 500hp Gnome-Rhone 9Kgr piston engines
 WEIGHTS
  Take-off weight6000 kg13228 lb
  Empty weight3710 kg8179 lb
 DIMENSIONS
  Wingspan24.45 m80 ft 3 in
  Length16.10 m53 ft 10 in
  Height4.85 m16 ft 11 in
  Wing area95.00 m21022.57 sq ft
 PERFORMANCE
  Max. speed230 km/h143 mph
  Cruise speed190 km/h118 mph
  Ceiling6000 m19700 ft
  Range1140 km708 miles
 ARMAMENT1 x 7.5mm machine-gun, 200kg of bombs
