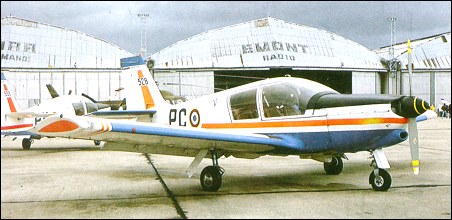

Robin HR.100 Royal, Safary, R.1180 Aiglon

This first all-metal design from Robin was also the first designed without a gull-wing configuration that had been inherited from Jodel designs, and the prototype was a modified DR.253. The initial HR. 100-200 Royal version had a 200hp engine, but this was up-rated for the Safari version. The specified HR 100/285 introduced a retractable undercarriage, and late in production life a 250hp Tiara engine was offered. Production of the HR.100 ended in 1976 with 174 examples built. Since then modifications to weight, cabin and cabin content have been implemented and re-designated as marques of the R. 1180 Aiglon which continued production in modest numbers.

Robert Jackson "The Encyclopedia of Aircraft", 2004

Specification
 MODELHR. 100/285
 CREW1
 PASSENGERS4
 ENGINE1 x 285hp Continental Tiara 6-285B flat-six piston engine
 WEIGHTS
  Take-off weight1400 kg3086 lb
 DIMENSIONS
  Wingspan9.08 m30 ft 9 in
  Length7.59 m25 ft 11 in
  Height2.71 m9 ft 11 in
  Wing area15.20 m2163.61 sq ft
 PERFORMANCE
  Max. speed325 km/h202 mph
  Ceiling5700 m18700 ft
  Range2130 km1324 miles
