Potez 58 / 580-595

1934

Back to the Virtual Aircraft Museum
  LIAISON, OBSERVATIONVirtual Aircraft Museum / France / Potez

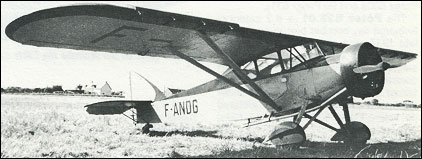

Potez 595

Ultimate development in the series of high-wing monoplane tourers which began with the Potez 36, the Potez 58 prototype first flew in September 1934. Like its immediate predecessor, the Potez 43, it had accommodation for a pilot and two passengers. The wing retained its Vee-strut bracing, leading-edge slats and folding capability, but the wing root was enlarged, the fuselage and tail unit design further refined, and the divided landing gear strengthened and equipped with spatted wheel fairings as standard.

Specification
 MODELPotez 585
 ENGINE1 x Potez 6Ba radial piston engine, 97kW
 WEIGHTS
  Take-off weight906 kg1997 lb
  Loaded weight515 kg1135 lb
 DIMENSIONS
  Wingspan11.3 m37 ft 1 in
  Length7.44 m24 ft 5 in
  Height2.36 m8 ft 9 in
  Wing area19.0 m2204.51 sq ft
 PERFORMANCE
  Max. speed190 km/h118 mph
  Cruise speed160 km/h99 mph
  Range750 km466 miles
