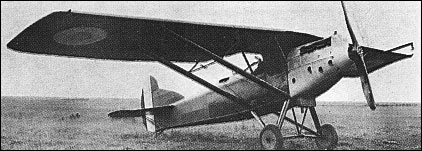

Potez 31

The Potez 31 was designed to meet the requirements of the 1925 C2 programme calling for a two-seat night fighter and diurnal reconnaissance-fighter. Not flown until 1929, and closely resembling the Potez 25M monoplane variant of the Potez 25 army co-operation biplane, the Potez 31 was a parasol monoplane of wooden construction with fabric covering. Embodying the facility developed for preceding types of accepting either Hispano- Suiza or Lorraine-Dietrich W-type water-cooled engines, the Potez 31 was tested with both the 500hp HS 12Mb and the 450hp L-D 12Eb. Armament consisted of two fixed forward-firing 7.7mm guns, two similar weapons on a flexible mount in the rear cockpit and a fifth gun firing through a hatch in the rear cockpit floor. Development of the Potez 31 was terminated with the discontinuation of the C2 programme.

Specification
 WEIGHTS
  Take-off weight2130 kg4696 lb
  Empty weight1270 kg2800 lb
 DIMENSIONS
  Wingspan14.30 m47 ft 11 in
  Length9.50 m31 ft 2 in
  Height3.40 m11 ft 2 in
  Wing area40.00 m2430.56 sq ft
 PERFORMANCE
  Max. speed242 km/h150 mph
