Morane-Saulnier M.S.224-225

1931

Back to the Virtual Aircraft Museum
  FIGHTERVirtual Aircraft Museum / France / Morane-Saulnier

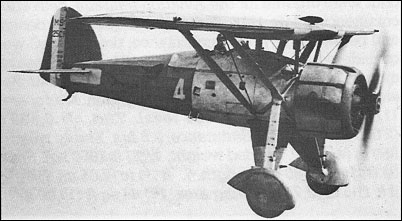

M.S.225

Shortly after the initiation of M.S.223 flight testing, the entire Jockey fighter concept was adjudged a failure and, with the inhibitions imposed by the chasseur leger programme removed, Morane-Saulnier developed a larger and heavier fighter, the M.S.224, which entered flight test in 1931. Based on experience with the preceding prototypes, the M.S.224 retained the mixed structure (dural spars and wooden ribs) of the earlier aircraft for the wing, mating this with a metal-andfabric covered dural fuselage, the ovoid cross section of which was widened to the near-circular. Wing area was increased by 1.00m2 to 17.00m2, and loaded weight was raised to 1400kg. Powered by a Gnome-Rhone 9Asb, the M.S.224 attained 303km/h during trials. A modified version, the M.S.225, was adopted by the Aviation Militaire (to become the Armee de l'Air in 1934) as an interim fighter pending availability of more advanced aircraft meanwhile called for by the 1931 C1 programme. The M.S.225 differed from the M.S.224 primarily in having a fully-cowled Gnome-Rhone 9Kdrs engine of 500hp. Armed with two 7.7mm guns, 74 M.S.225s were delivered during 1933-34. Of these, 55 were supplied to the Aviation Militaire (one being fitted with a 690hp Hispano-Suiza 12Xcrs engine with a 20mm cannon mounted between the cylinder banks and flown as a test-bed under the designation M.S.227), 16 to the Marine Nationale and three were exported to China. The last M.S.225 fighters were phased out of first-line service during 1938.

3-View

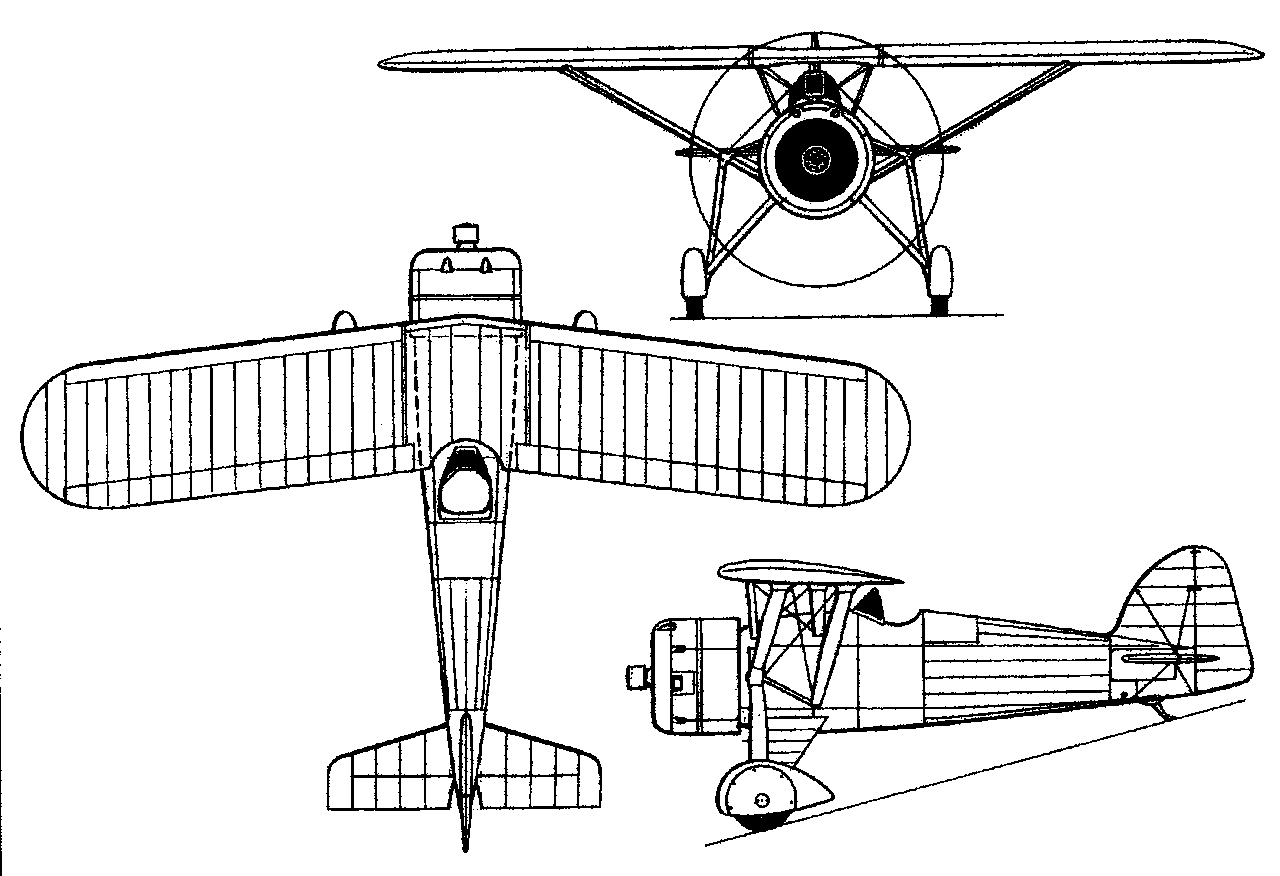

M.S.225A three-view drawing of M.S.225 (1280 x 876)

Specification
 MODELM.S.225
 WEIGHTS
  Take-off weight1590 kg3505 lb
  Empty weight1154 kg2544 lb
 DIMENSIONS
  Wingspan10.56 m35 ft 8 in
  Length7.25 m24 ft 9 in
  Height3.26 m11 ft 8 in
  Wing area17.20 m2185.14 sq ft
 PERFORMANCE
  Max. speed334 km/h208 mph
  Range700 km435 miles

Comments
barbara mccomas, e-mail, 14.11.2011 23:34

please send me some pitcures of my babies Thank You!

reply

Victor Soller, e-mail, 26.10.2010 00:24

Help!!! I am starting to build the Morane 225. What I really need is the color scheme of this plane. Can you help me?

reply

Bill McComas Jr, e-mail, 17.08.2009 04:22

I am an avid model builder of aircraft and appreciate the info presented on your website...many thanks!!!!

reply

Timo Ruoko, e-mail, 28.01.2007 21:07

Ceiling was 9500 m
