Dassault Super Mystere
1955
Back to the Virtual Aircraft Museum
  FIGHTER-BOMBERVirtual Aircraft Museum / France / Dassault

Dassault Super Mystere

The first West European aircraft capable of exceeding M=1.0 in level flight to attain quantity production status, the Super-Mystere shared only a common design origin with the Mystere fighter series, being an entirely new type. The first prototype, designated Super- Mystere B1 and powered by a Rolls-Royce Avon RA 7R with an afterburning thrust of 4330kg, was flown on 2 March 1955, and the first of five SNECMA Atar-powered pre-production Super-Mystere B2s followed on 15 May 1956. Production was ordered for the Armee de l'Air, the first series Super-Mystere B2 flying on 26 February 1957, and a total of 180 being built of which 36 were procured by Israel in 1958. The Super- Mystere B2 was powered by an Atar 101G-2 or -3 of 3375kg dry thrust and 4460kg with maximum afterburning. Armament consisted of two 30mm cannon and 35 internally-housed 68mm rockets (the latter being discarded at an early service stage), external loads including two Sidewinder AAMs, two 400-500kg bombs or rocket pods.

Two examples were completed as Super Mystere B4s in 1958, these having Atar 9B engines rated at 6000kg with afterburning. During Israeli service, the Super-Mystere B2s were re-engined with a non-afterburning Pratt & Whitney J52-P-8A turbojet of 4218kg. In 1977, 18 of these aircraft were sold by Israel to Honduras where the last surviving examples were withdrawn from service in 1989.

Dassault Super Mystere


Specification
 MODELSuper Mystere B2
 ENGINE1 x SNECMA Atar 101G-2/-3 turbojet, 4460kg of reheat thrust
 WEIGHTS
    Take-off weight10000 kg22046 lb
    Loaded weight6932 kg15283 lb
 DIMENSIONS
    Wingspan10.52 m35 ft 6 in
    Length14.13 m46 ft 4 in
    Height4.55 m15 ft 11 in
    Wing area35 m2376.74 sq ft
 PERFORMANCE
    Max. speed1195 km/h743 mph
    Ceiling17000 m55750 ft
    Range870 km541 miles
    Range w/max.fuel1790 km1112 miles
 ARMAMENT2 x 30mm cannon, 1000kg of weapons

3-View
Dassault Super MystereA three-view drawing (1660 x 1593)

Comments
Paul Scott, 27.03.2015

Excellent French aircraft but with aerodynamics copied from North American's F-100 Super Sabre

Remy, 05.12.2011

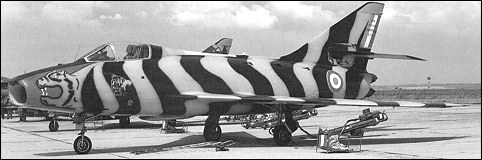

The SMB 2 in tiger paint scheme in the above photo belongs to Escadron de chasse 1/12 Cambrésis and was taken at Cambrai-Epinoy BA103 Air Force Base during the 1972 NATO Tiger Meet.

Chinoy, 05.01.2010

My father flew one of these into Pakistan in 1965.
He was shot down over Pakistan. And lived to tell the tale.

I Balaban, 30.12.2009

What Avionics was employed in this aircraft?

Eduardo Sosa, 22.10.2007

one of these planes is in permanent exposition at the national air museum of Honduras.

Eduardo Sosa, 22.10.2007

one of these planes is in permanent exposition at the national air museum.
