Dassault Mystere IVN
1954
Back to the Virtual Aircraft Museum
  NIGHT INTERCEPTORVirtual Aircraft Museum / France / Dassault

Dassault Mystere IVN

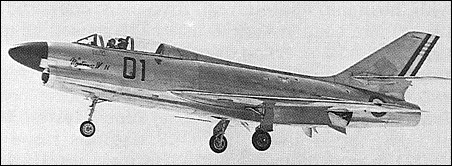

Developed in parallel with the Mystere IVB as a tandem two-seat night and all-weather interceptor, the Mystere IVN differed from the single-seat fighter in several respects. A 1.4m section was added to the forward fuselage to accommodate a second crew member; internal fuel capacity was substantially increased and provision was made for an APG 33 intercept radar with the scanner above the engine air intake. Powered by a Rolls-Royce Avon RA 7R rated at 4330kg with maximum afterburning, the Mystere IVN had provision for an armament of two 30mm cannon and a retractable rocket pack for 52 unguided air-air rockets of 68mm calibre. The sole prototype was flown on 19 July 1954, by which time it had been decided to discontinue the development programme owing to France's inability to finance the simultaneous development of two night fighters (the other being the Vautour), the insufficient endurance of the Mystere IVN, and the unsuitability of the proposed APG 33 radar.

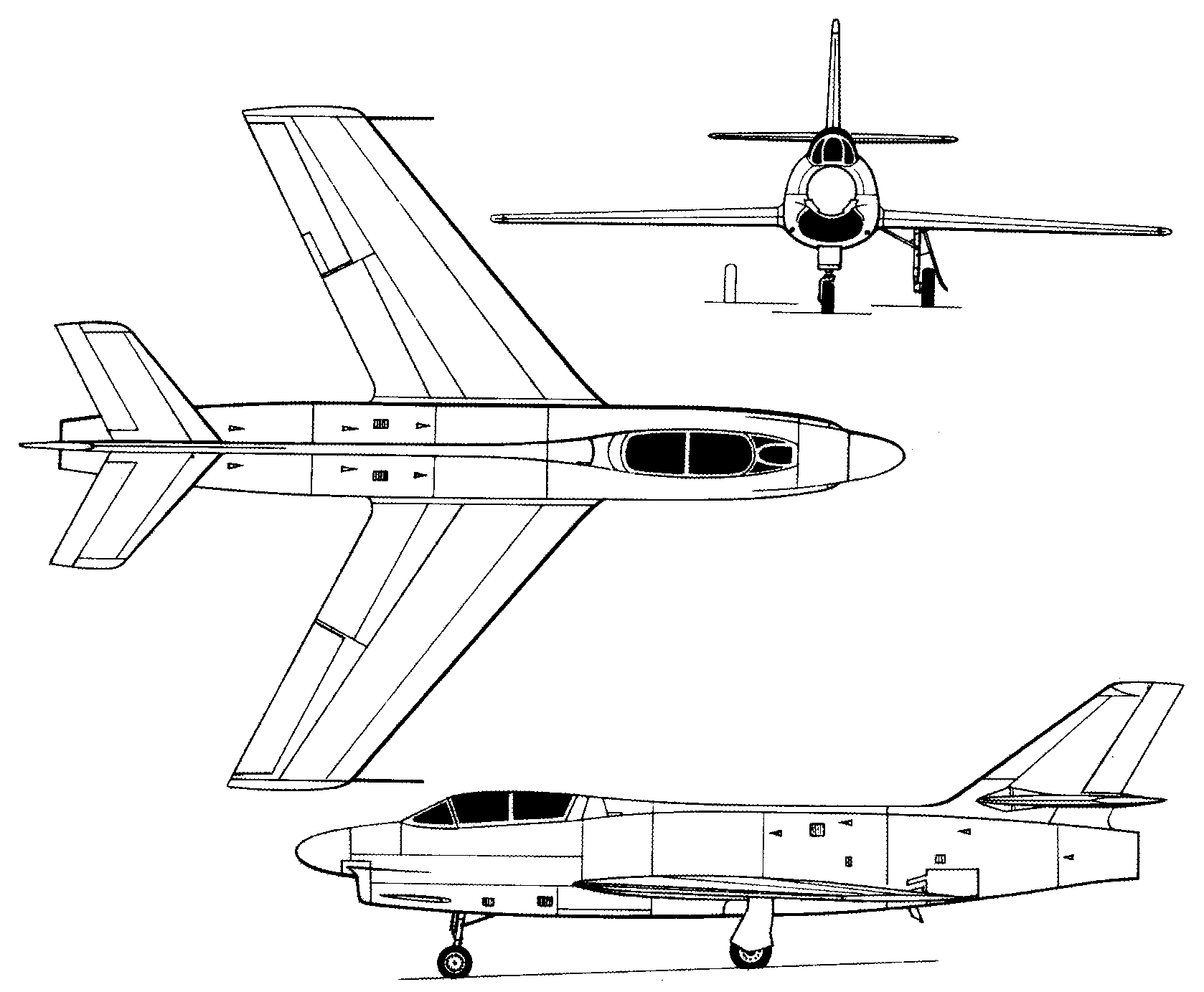

3-View
Dassault Mystere IVNA three-view drawing (1678 x 1383)


Specification
 WEIGHTS
    Take-off weight10320 kg22752 lb
    Empty weight7140 kg15741 lb
 DIMENSIONS
    Wingspan11.12 m37 ft 6 in
    Length14.92 m49 ft 11 in
    Height4.60 m15 ft 1 in
    Wing area32.0 m2344.44 sq ft
 PERFORMANCE
    Max. speed1030 km/h640 mph
