Caudron C.61

1921

Back to the Virtual Aircraft Museum
  TRANSPORTVirtual Aircraft Museum / France / Caudron

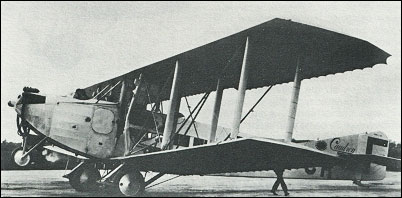

Caudron C.61

The prototype of the Caudron C.61 civil transport appeared in 1921. It was a three-bay biplane of wooden construction with fabric covering, powered by three 112kW Hispano-Suiza engines. Pilot and co-pilot were seated in open side-by-side cockpits aft of the nose engine; behind them were the freight hold and, to the rear, a cabin for six passengers. Landing gear comprised two twin-wheel main units and a tail skid, plus a single wheel under the nose to prevent the aircraft from nosing-over on landing.

Twelve production C.61s were powered by Hispano-Suiza 8Ac engines and had an enlarged cabin for eight passengers. Six aircraft were purchased by the Compagnie Franco-Roumaine de; Navigation Aerienne and operated a route between Bucharest and Belgrade from 1923 onwards. The remaining C.61s were flown by various French companies, one being lost in an accident when it came down at sea.

Specification
 PASSENGERS8
 ENGINE3 x 134kW Hispano-Suiza 8Ac inline piston engines
 WEIGHTS
  Take-off weight3480 kg7672 lb
  Empty weight2200 kg4850 lb
 DIMENSIONS
  Wingspan24.14 m79 ft 2 in
  Length14 m46 ft 11 in
  Wing area104 m21119.45 sq ft
 PERFORMANCE
  Max. speed160 km/h99 mph
  Ceiling4000 m13100 ft
  Range640 km398 miles
