Buscaylet de Monge 5/2

1922

Back to the Virtual Aircraft Museum
  FIGHTERVirtual Aircraft Museum / France / Buscaylet

Buscaylet de Monge 5/2

During 1922, Buscaylet Pere et Fils-Bobin produced an exceptionally clean single-seat parasol fighter monoplane designed by Louis de Monge. Known as the Buscaylet- de Monge 5/2, the fighter was of metal construction with metal fuselage skinning and wooden wing skinning. Provision was made to fit auxiliary stub wings (serving to increase the wing area from 24m2 to 32m2 to convert the aircraft to sesquiplane configuration for the high altitude role. Powered by a 300hp Hispano-Suiza 8Fb water-cooled engine and carrying an armament of two 7.7mm synchronised machine guns, the Buscaylet-de Monge 5/2 was flown for the first time in 1923 at Villacoublay, but was declared trop moderne for service use, further development being abandoned.

3-View

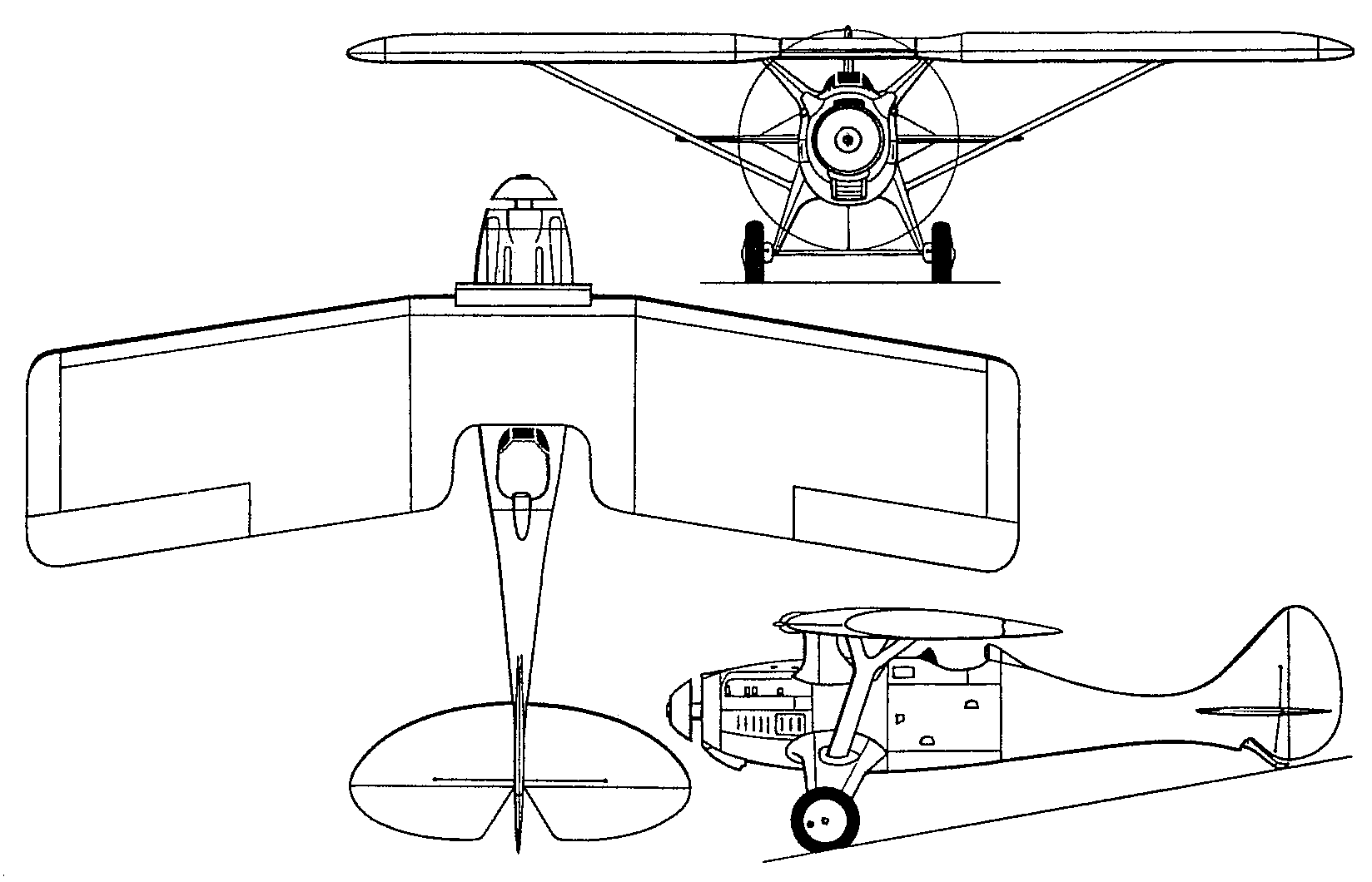

Buscaylet de Monge 5/2A three-view drawing (1648 x 1060)

Specification
 WEIGHTS
  Take-off weight1350 kg2976 lb
 DIMENSIONS
  Wingspan10.90 m36 ft 9 in
  Length7.15 m23 ft 5 in
  Height2.70 m9 ft 10 in
  Wing area24.0 m2258.33 sq ft
 PERFORMANCE
  Max. speed270 km/h168 mph
