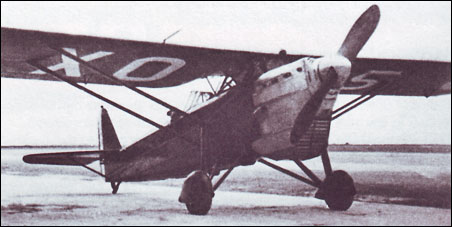

ANF-Mureaux 115, 117

Developed from 1928 onwards, originally under the designation R.2, the Mureaux series of observation aircraft constituted the main equipment of the French Army's Groupes Aeriens d'Observation (GAO) in September 1939. The principal variants were the 115 and 117, built between 1936 and 1939. It was a Mureaux 115 of GAO 553 which, on 8 September 1939, had the dubious distinction of being the first aircraft to be destroyed by the Luftwaffe. During the 'Phoney War' period the Mureaux were progressively replaced by the Potez 63.11, but 110 were still in service at the time of the German invasion of 10 May 1940. A few were used as makeshift night fighters.

Specification
 CREW2
 ENGINE1 x 860hp Hispano-Suiza 12-cylinder liquid-cooled engine
 WEIGHTS
  Take-off weight3450 kg7606 lb
 DIMENSIONS
  Wingspan15.40 m51 ft 6 in
  Length10.18 m33 ft 5 in
  Height3.44 m11 ft 3 in
 PERFORMANCE
  Max. speed317 km/h197 mph
  Ceiling8000 m26250 ft
  Range804 km500 miles
 ARMAMENT4-5 x 7.5mm machine guns, 400kg of bombs
