Westland Wizard

1926

Back to the Virtual Aircraft Museum
  FIGHTERVirtual Aircraft Museum / United Kingdom / Westland

Westland Wizard

The first attempt by Westland to develop a monoplane fighter evolved from a private venture prototype designed - by the company's draughtsmen in their spare time - during 1926 with high speed performance the primary objective. Known simply as the Racer, this unarmed parasol monoplane of mixed construction was powered by a 275hp Rolls Royce Falcon III inline engine and flew in November 1926. Badly damaged in a forced landing in 1927, the Racer was rebuilt in much modified form as the Wizard fighter. In this form, it was primarily of metal construction and had a 490hp unsupercharged Rolls-Royce F.XI 12-cylinder Vee-type water:cooled engine in a more streamlined nose cowling, with a retractable radiator in the underside of the fuselage. The Wizard - which was flying by late 1927 - used a similar parasol wing to that of the Racer, this being mounted close to the fuselage on tandem pylons on the fuselage centreline. Two 7.7mm Vickers guns were mounted semi-externally in the fuselage sides. The Wizard's performance, and particularly its rate of climb, attracted a modicum of Air Ministry interest and a contract to cover testing at Martlesham Heath. There, the pilot's forward view was found unsatisfactory, leading Westland to design and fit a new wing with changed planform outboard, new inset ailerons and a thinner centre section, mounted on more conventional cabane strutting. A supercharged 500hp Kestrel II (F.XIS) was fitted, but in this final form, the Wizard II, as it was sometimes known, demonstrated a reduced performance and failed to persuade the Air Ministry to change its policy towards monoplane fighters.

3-View

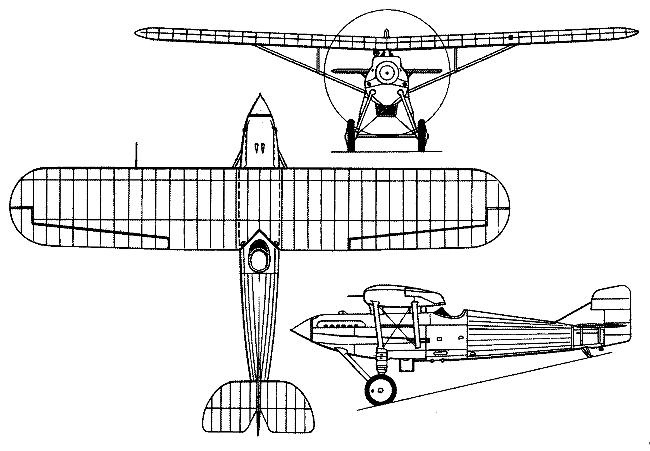

Westland WizardA three-view drawing (650 x 451)

Specification
 WEIGHTS
  Take-off weight1486 kg3276 lb
  Empty weight1067 kg2352 lb
 DIMENSIONS
  Wingspan12.04 m40 ft 6 in
  Length8.18 m27 ft 10 in
  Height2.84 m9 ft 4 in
  Wing area22.11 m2237.99 sq ft
 PERFORMANCE
  Max. speed303 km/h188 mph

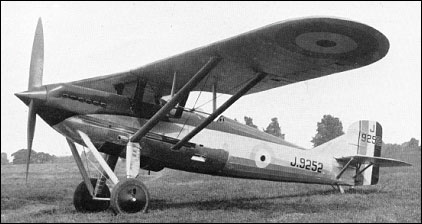

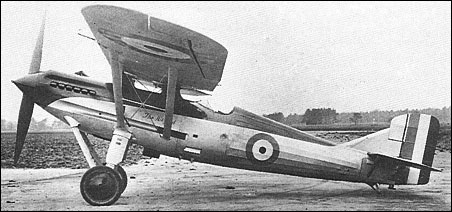

Westland Wizard
