  BOMBER, RECONNAISSANCEVirtual Aircraft Museum / United Kingdom / Vickers

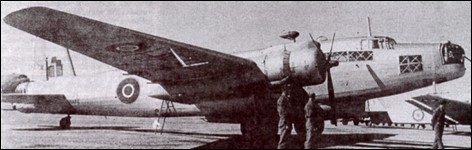

Vickers 284 Warwick

The Warwick was a slightly enlarged version of the Wellington and employed the same geodetic form of construction. It was designed originally to Specification B. 1/35 to replace the Wellington. But because the generation of four-engined bombers was also being produced at the same time, it was subsequently adapted for reconnaissance duties with Coastal Command and first went into service in 1943. Other models were built for transport and air-sea rescue duties. The final version, the GR.V, entered service in 1945 and carried bombs, mines or depth-charges. About 840 production Warwicks were built.

3-View

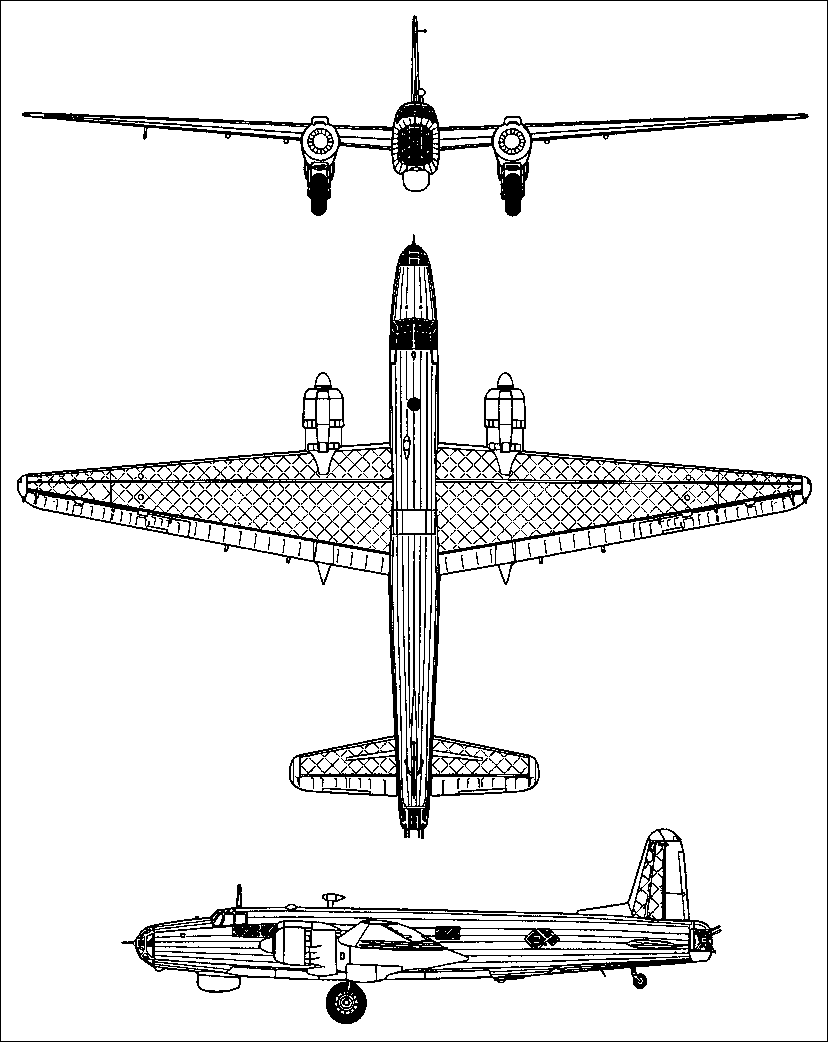

Vickers 284 WarwickA three-view drawing (828 x 1042)

Specification
 MODEL"Warwick" GR Mk.II
 CREW6
 ENGINE2 x Bristol "Centaur VI", 1864kW
 WEIGHTS
  Take-off weight23247 kg51251 lb
  Empty weight14118 kg31125 lb
 DIMENSIONS
  Wingspan29.48 m97 ft 9 in
  Length20.88 m69 ft 6 in
  Height5.64 m19 ft 6 in
 PERFORMANCE
  Max. speed422 km/h262 mph
  Ceiling5790 m19000 ft
  Range3460 km2150 miles
 ARMAMENT8 x 7.7mm machine-guns, 6900kg of bombs

Comments
Clipper, 01.08.2011 22:23

John, tell your old man thanks, if you still can. We appreciated the Warwicks flying with Coastal Command, as they almost always got our downed chums home. Unfortunatley, when we crashed, we did so over France, so their lifeboat wasn't as effective.

reply

napo, 21.06.2011 05:00

mines or depth-charges. About 840 production Warwicks were built.

reply

bombardier, e-mail, 25.05.2011 10:07

Looks like a big Wellington

reply

Bob, e-mail, 14.12.2010 08:03

Finger trouble in last comment - it's WING Bucks. not Beds. Also wanted to ask if anyone else remembers this??

reply

Bob, e-mail, 14.12.2010 07:50

#26 OTU RAF WING Beds.flew Wellingtons.Two WarwickII's HG349&HG350 with Bristol Centaurus VII engines were introduced into the regular program and I and my crew were chosen to do the course on them, commencing March 1945. We understood this was to provide easier transition to the upcoming Lincoln. Great aircraft to fly and much fun buzzing the odd B17 that no doubt thought we were just another Wimpey.

reply

john, e-mail, 04.10.2010 19:23

my father flew this plane in s. africa,mediteranian,italy during the 2nd world war. great aircraft

reply
