| One prototype, first flown 11 January 1933. No production.

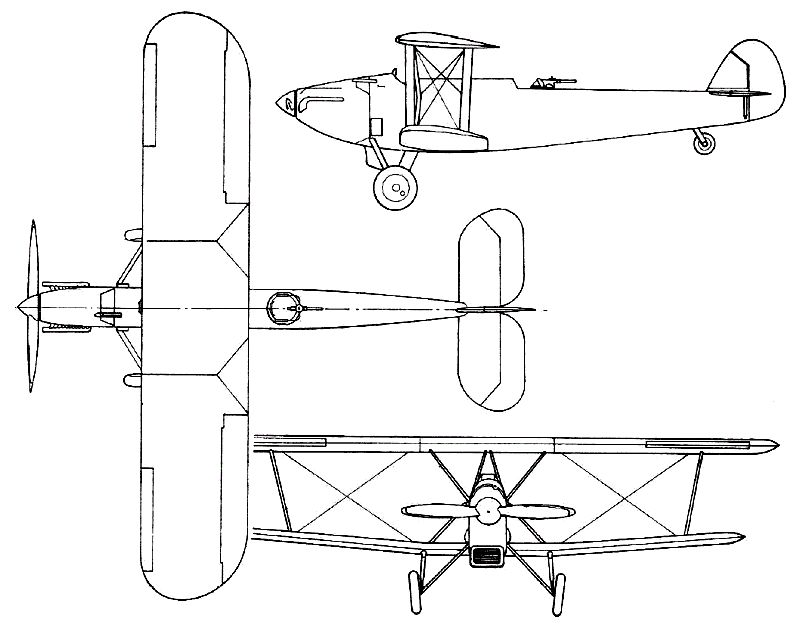

 | A three-view drawing (800 x 628) |
| CREW | 2 |
| ENGINE | 1 x 825 Rolls-Royce Buzzard IIIMS |
| WEIGHTS |
| Take-off weight | 4390 kg | 9678 lb |
| Empty weight | 2324 kg | 5124 lb |
| DIMENSIONS |
| Wingspan | 15.14 m | 50 ft 8 in |
| Length | 13.28 m | 44 ft 7 in |
| Height | 4.39 m | 14 ft 5 in |
| Wing area | 66.89 m2 | 720.00 sq ft |
| PERFORMANCE |
| Max. speed | 256 km/h | 159 mph |
| Ceiling | 4907 m | 16100 ft |
| ARMAMENT | 2 x 7.7mm machine-guns, 1000kg of bombs or a torpedo |
|
