Royal Aircraft Factory B.E.12a

With the B.E.12 established in production in 1916, based on the B.E.2c airframe with its equi-span two-bay wing and massive horizontal tail surfaces, a further marriage was arranged to combine the R. A.F.4a engine with the newer B.E.2e airframe. This introduced the single-bay cellule with overhanging upper wing and a smaller tailplane/elevator combination, together with the larger, rounded fin of the B.E.12. Designated B.E.12a in this form, the type was ordered from Coventry Ordnance Works and Daimler, each of which received contracts for 50 during 1916 (some of the Daimler batch being completed as B.E.12s). The B.E.12a's served briefly with Home Defence units and more extensively in Palestine, with the Australian-manned No 67 Squadron.

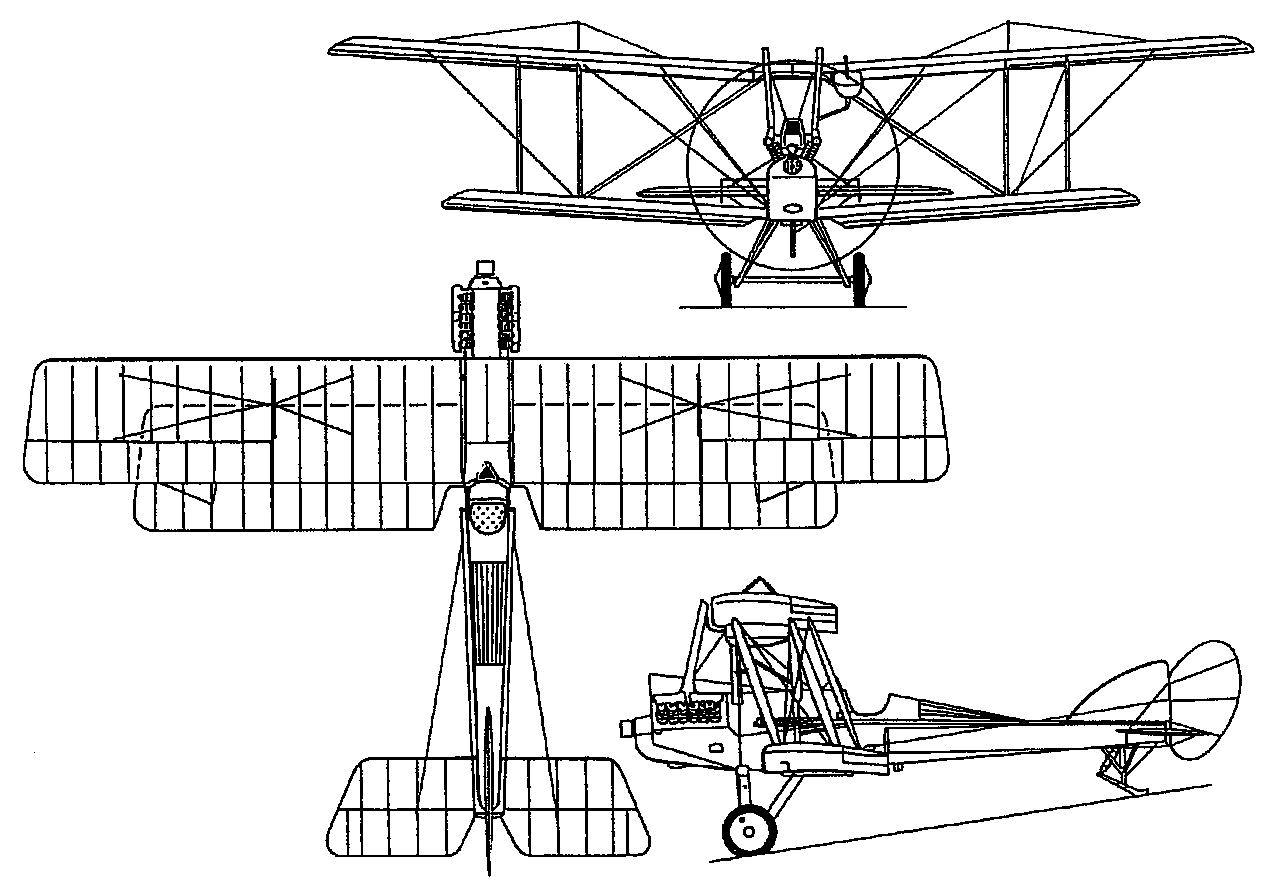

3-View

A three-view drawing (1278 x 894)
