Port Victoria P.V.8 Eastchurch Kitten

Although designed by Lt G H Millar of the RNAS Experimental Flight at Eastchurch and partly built by that establishment, this competitor for the P.V.7 as a lightweight single-seat interceptor was completed in the workshops at Port Victoria and assigned the designation P.V.8. Becoming known as the Eastchurch Kitten, the P.V.8 was an angular single-bay staggered biplane intended, like the P.V.7, to be powered by the geared ABC Gnat engine, but of necessity fitted with the 35hp ungeared version of this two-cylinder power plant. When initially flown on 1 September 1917, the P.V.8 possessed no fixed tailplane, but the horizontal tail surfaces were redesigned to incorporate a small tailplane prior to the second flight. Proving itself superior to the P.V.7 in every way, the P.V.8 suffered similar problems with its engine. On 13 March 1918, the Eastchurch Kitten was packed for despatch to the USA, where it was to be evaluated, but there is no record that it ever reached its destination.

3-View

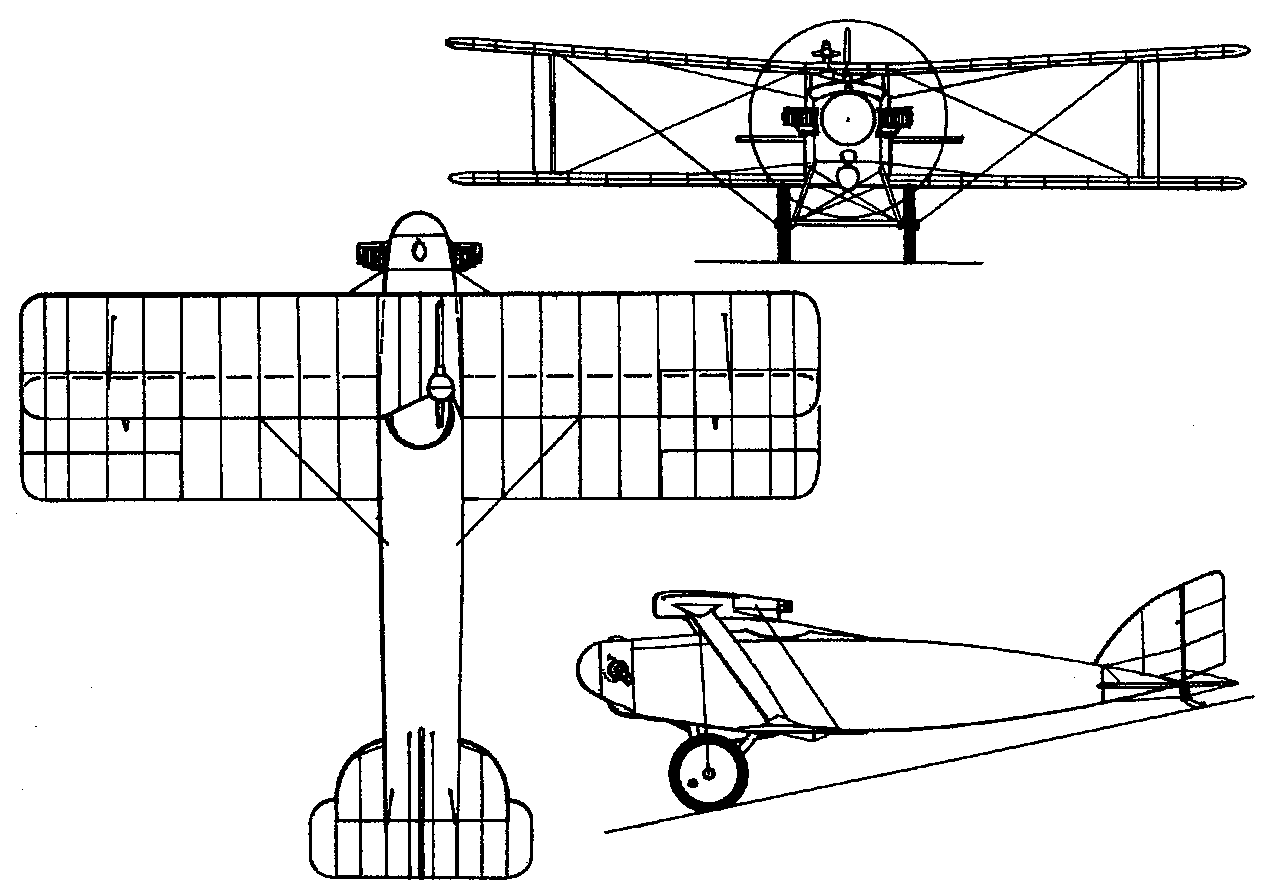

Port Victoria P.V.8 Eastchurch KittenA three-view drawing (1278 x 892)

Specification
 WEIGHTS
  Take-off weight266 kg586 lb
  Empty weight154 kg340 lb
 DIMENSIONS
  Wingspan5.78 m19 ft 12 in
  Length4.76 m16 ft 7 in
  Height1.57 m5 ft 2 in
  Wing area9.85 m2106.02 sq ft
 PERFORMANCE
  Max. speed151 km/h94 mph
