Miles M.11 Whitney Straight

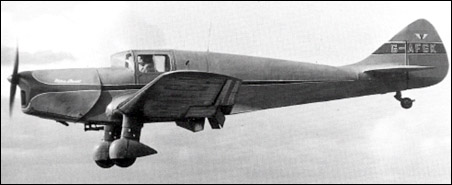

In the mid-1930s wealthy aviation enthusiast Whitney Straight approached F. G. Miles to design a new lightplane for flying club use, the result being the Miles M.11 Whitney Straight two-seat cabin monoplane of low-wing configuration. The prototype (G-AECT) was flown for the first time on 14 May 1936, and its all-round good qualities resulted in the production of 50 M.11 A, M.11B and M.11C aircraft over the next two years. A number of these were used for experimental purposes, including the testing of various engines and, on the prototype, of auxiliary aerofoil flaps, the data gained proving beneficial to later Miles aircraft. No new M.11 aircraft were supplied for military use, but a number were impressed for service as communications aircraft during World War II, their number including 23 for the RAF (21 in the UK and two in India), and three for the Royal New Zealand Air Force. An improved model of the M.11 was developed with three-seat accommodation and flown as the M.17 Monarch.

3-View
Miles M.11 Whitney StraightA three-view drawing (800 x 775)

Comments
Barry, 15.08.2016 15:42

Power plant 1 x 130 h.p Gypsy Major inverted 4 cylinder air cooled in line.

Span 35'8" Length 25'0" Height 6'6" wing area 178 sq ft
Empty weight 1,250 lb Loaded weight 2,000 lb

Max speed 145 mph Cruising speed 130 mph Range 570 miles
Service Ceiling 18,500 ft

reply

kevin, e-mail, 07.12.2012 23:25

in NZ.. ZK AJZ.. a 3 seat variant had an extra belly flap

reply

lucy, 20.06.2011 13:52

was developed with three-seat accommodation and flown as the M.17 Monarch.
