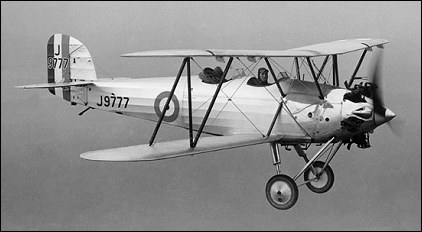

| Two-seat training biplane powered by an Armstrong Siddeley Mongoose III radial engine. Small number built for the RAF, for civil registration and for export to Canada and New Zealand.

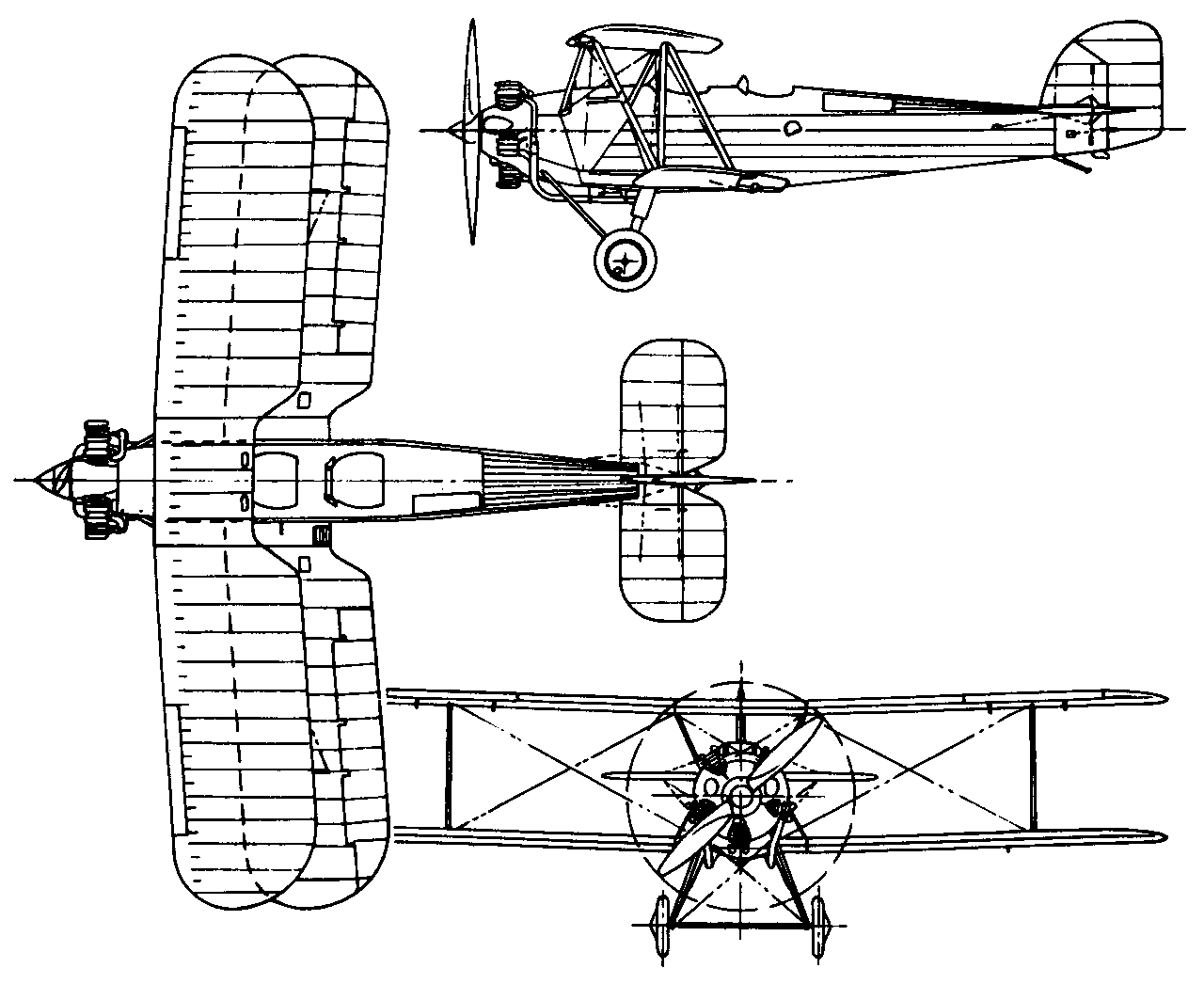

| A three-view drawing (1280 x 1046) |
CREW | 2 |
ENGINE | 1 x Armtrong Siddeley Mongoose IIIC, 112kW |
WEIGHTS |
Take-off weight | 794 kg | 1750 lb |
Empty weight | 499 kg | 1100 lb |
DIMENSIONS |
Wingspan | 8.71 m | 29 ft 7 in |
Length | 7.21 m | 24 ft 8 in |
Height | 2.54 m | 8 ft 4 in |
Wing area | 22.09 m2 | 237.77 sq ft |
PERFORMANCE |
Max. speed | 200 km/h | 124 mph |
Ceiling | 5945 m | 19500 ft |
