| One prototype, first flown on 6 December 1934. No production.

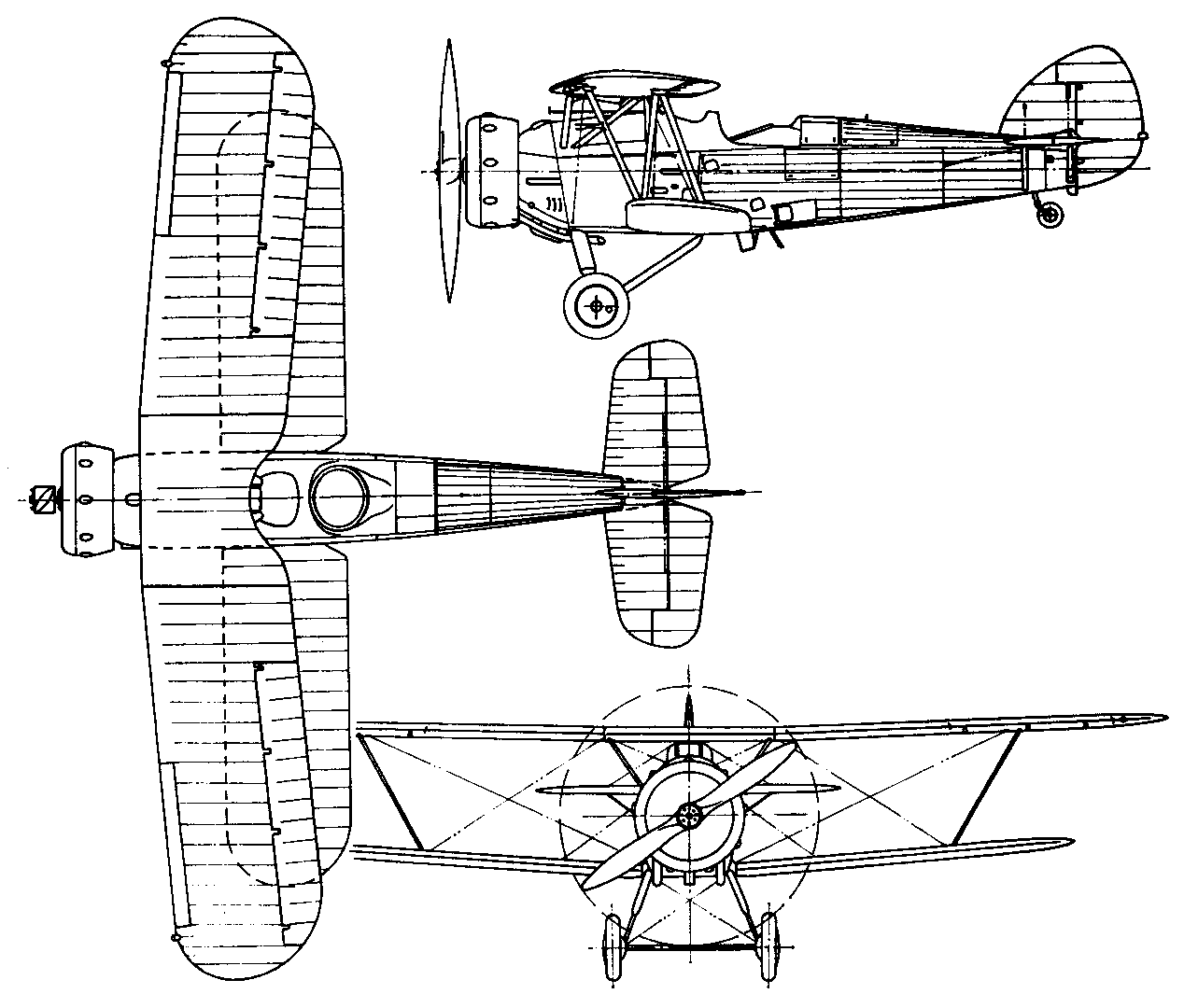

 | A three-view drawing (1268 x 1080) |
| CREW | 2 |
| ENGINE | 1 x 690hp Bristol Pegasus IIIM.3 |
| WEIGHTS |
| Take-off weight | 3019 kg | 6656 lb |
| Empty weight | 1693 kg | 3732 lb |
| DIMENSIONS |
| Wingspan | 12.19 m | 40 ft 0 in |
| Length | 9.09 m | 30 ft 10 in |
| Height | 3.61 m | 12 ft 10 in |
| Wing area | 32.33 m2 | 348.00 sq ft |
| PERFORMANCE |
| Max. speed | 295 km/h | 183 mph |
| Ceiling | 7224 m | 23700 ft |
| Range | 741 km | 460 miles |
| ARMAMENT | 2 x 7.7mm machine-guns, 2 x 110kg bombs |
| Michael Ogden, e-mail, 05.05.2014 00:50 Flown by my father at Filton on following dates per his log book
11.1.38 75mins
27.1.38 300 mins
Aug 38 150 mins reply |
|
