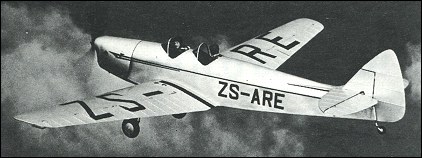

De Havilland D.H.94 Moth Minor

On 24 August 1931 the company had flown the only example of the de Havilland D.H.81 Swallow Moth, a lowwing open-cockpit two-seater powered by a 60 kW (80hp) Gipsy IV engine. With production capacity filled by orders for various models of the Moth the project was discontinued, to be resurrected some years later when advantage could be taken of-some structural techniques used in the Comet and Albatross. Of wooden construction throughout, the prototype D.H.94 Moth Minor was first flown by Captain Geoffrey de Havilland at Hatfield on 22 June 1937. Production followed and by the outbreak of World War II some 71 examples had been completed, including nine Moth Minor Coupe aircraft with built-up rear fuselages and hinged cabin tops. Early in 1940, when Hatfield's production capacity was required urgently for aircraft more vital to the war effort, the Moth Minor drawings, jigs, components and finished but undelivered airframes were delivered to de Havilland Aircraft Pty Ltd at Bankstown, Sydney. More than 40 were supplied to the Royal Australian Air Force.

3-View

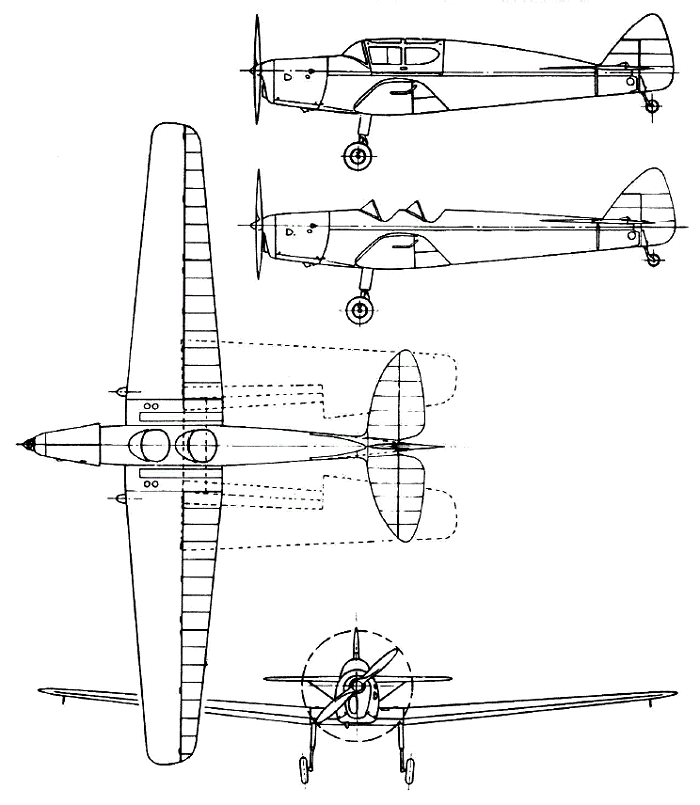

De Havilland D.H.94 Moth MinorA three-view drawing (700 x 805)

Specification
 MODELD.H.94
 ENGINE1 x de Havilland Gipsy Minor inline piston engine, 67kW
 WEIGHTS
  Take-off weight703 kg1550 lb
  Empty weight446 kg983 lb
 DIMENSIONS
  Wingspan11.15 m37 ft 7 in
  Length7.44 m24 ft 5 in
  Height1.93 m6 ft 4 in
  Wing area15.05 m2162.00 sq ft
 PERFORMANCE
  Max. speed190 km/h118 mph
  Cruise speed161 km/h100 mph
  Ceiling5030 m16500 ft
  Range483 km300 miles

Comments
Marion Leggo, e-mail, 08.01.2024 03:29

My father, Maurice Blake was part owner of the DH-94, VH-ACS, Moth Minor from 1952-54.
This was the first plane my father owned along with his brother Jeff Blake and R. Philips. Dad had actually failed his pilot license due to colour blindness, but it didn’t stop him from flying all over the southern parts of Australia with Uncle Jeff in the early 1950’s. Dad & Jeff worked in the mines at Broken Hill, and spent every weekend flying around for fun. I have photographs if anyone is interested.

reply

Steve Lane, e-mail, 23.07.2020 14:26

My dad used to own a 1 /2 share in G- AFNI
I was able to discover that it was due to be rebuilt after an accident pre 2000 but I can’t find what happened.
It was a Red Coupe with white lightning stripe.
Any information would be gratefully received

reply

Eddy, e-mail, 11.05.2020 20:17

Does anyone know where I can find a set of blueprints for the DH94
Thanks..Eddy

reply

Graham Treloar, e-mail, 10.05.2012 05:09

I owned DH-94 VH-ACS for 12 years. It spent many years on the Family properties near Broken Hill. It was used for sheep mustering, checking waters & commuting. I found it a truly delightful fun aeroplane to fly. I sold in in the late 1960's when I started an Aviation busines at Parafield in South Australia which became Rossair Pty. Ltd - a Cessna Dealership.

reply

Marion Leggo, e-mail, 08.01.2024 Graham Treloar

Hi Graham, my father owned this Moth Minor, VH-ACS, from 1952-1954. Do you know who flew this aeroplane to Leigh Creek airport in 1950?
Dad flew in the BP England to Australia Commemorative Air Race in 1969, in his Piper Cherokee 6, VH-BMB. I have written his memoir on his journey in this air race.
I would love to hear from you.
Regards Marion Leggo

reply

Marion Leggo, e-mail, 08.01.2024 Graham Treloar

Hi Graham, my father owned this Moth Minor, VH-ACS, from 1952-1954. Do you know who flew this aeroplane to Leigh Creek airport in 1950?
Dad flew in the BP England to Australia Commemorative Air Race in 1969, in his Piper Cherokee 6, VH-BMB. I have written his memoir on his journey in this air race.
I would love to hear from you.
Regards Marion Leggo

reply

Marion Leggo, e-mail, 07.01.2024 Graham Treloar

Hi Graham, my father owned this Moth Minor, VH-ACS, from 1952-1954. Do you know who flew this aeroplane to Leigh Creek airport in 1950?
Dad flew in the BP England to Australia Commemorative Air Race in 1969, in his Piper Cherokee 6, VH-BMB. I have written his memoir on his journey in this air race.
I would love to hear from you.
Regards Marion Leggo

reply

Graham Treloar, e-mail, 10.05.2012 05:09

I owned DH-94 VH-ACS for 12 years. It spent many years on the Family properties near Broken Hill. It was used for sheep mustering, checking waters & commuting. I found it a truly delightful fun aeroplane to fly. I sold in in the late 1960's when I started an Aviation busines at Parafield in South Australia which became Rossair Pty. Ltd - a Cessna Dealership.

reply

Steve Jenkins, e-mail, 24.01.2012 06:59

I own and operate DH-94 S /N DHP17(Aus Built) RAAF A21-38, now VH-AIB and still flying based at Goolwa Airport, South Australia.

reply

Guy Caulfield, e-mail, 12.05.2011 12:43

Hello Stan Smith, I have an authentic propeller for this aircraft if you are interested.

reply

Stan Smith, e-mail, 11.06.2010 09:37

I own and operate DH94 Minor S /N 94012 ZK-AKM I rebuilt it in 1977 and it is still going strong Email me for any other info

reply

Paul Gillies, e-mail, 06.02.2022 Stan Smith

Hi Stan, I am considering a project DH94 here in the US and was wondering about the engine rebuild which it may well need. Is that something you do or should I send it to the UK ? Thanks mate, cheers Paul

reply
