De Havilland D.H.91 Albatross

1937

Back to the Virtual Aircraft Museum
  PASSENGER, TRANSPORTVirtual Aircraft Museum / United Kingdom / De Havilland

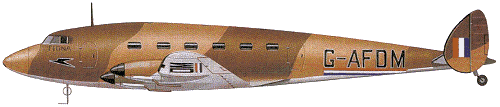

De Havilland D.H.91 Albatross

Designed by A. E. Hagg to an Air Ministry specification for a transatlantic mailplane, the de Havilland D.H.91 Albatross was aerodynamically and aesthetically one of the outstanding commercial aircraft of the pre-war era. Of wooden construction, it introduced the ply-balsaply sandwich fuselage structure later used so successfully for the Mosquito, and had a one-piece wing similar to that of the Comet. Powerplant consisted of four de Havilland Gipsy Twelve engines driving constant-speed propellers, and the landing gear main units were electrically retractable. The prototype, initially with twin fins mounted at mid-span on the tailplane, was flown for the first time at Hatfield on 20 May 1937. Flight test results indicated that the vertical tail surfaces were unsatisfactory, and the redesigned tail unit incorporated endplate fins with unbalanced rudders and trim tabs.

Problems with the landing gear retraction system resulted in a wheels-up landing for the first prototype on 31 March 1938, and a structural weakness in the rear fuselage was revealed when the second prototype broke into two a few months later when landing during overload trials. Effective modifications were soon evolved and the two prototypes were repaired and used experimentally by Imperial Airways. However, their range made them particularly useful for a shuttle service between the UK and Iceland, and they were impressed for RAF use with No. 271 Squadron in September 1940. Five Albatrosses, with reduced capacity, additional cabin windows and slotted flaps replacing the split trailingedge flaps, were delivered to Imperial Airways between October 1938 and June 1939. Providing accommodation for 22 passengers and a crew of four, they saw wartime service on the Bristol- Lisbon and Bristol-Shannon routes until, with their numbers reduced to two by enemy action or accidents, the survivors were scrapped in September 1943.

FACTS AND FIGURES

© The fuselage was made of laminations of cedar ply and balsa wood, built as a monocoque in which the skins bore the load.

© As first built the Albatross had tailfins inset near the fuselage, but directional instability saw a change to more traditional endplate fins.

© Passenger entry was through a door just 1m tall and the rear fuselage was particularly cramped. In general the cabin was noisy and the ride was uncomfortable.

De Havilland D.H.91 Albatross

Specification
 MODELD.H.91
 CREW4
 PASSENGERS22
 ENGINE4 x de Havilland Gipsy Twelve piston engines, 391kW
 WEIGHTS
  Take-off weight13381 kg29500 lb
  Empty weight9630 kg21231 lb
 DIMENSIONS
  Wingspan32.00 m105 ft 0 in
  Length21.79 m72 ft 6 in
  Height6.78 m22 ft 3 in
  Wing area100.15 m21078.00 sq ft
 PERFORMANCE
  Max. speed362 km/h225 mph
  Cruise speed338 km/h210 mph
  Ceiling5455 m17900 ft
  Range1674 km1040 miles

3-View
De Havilland D.H.91 AlbatrossA three-view drawing (1024 x 702)
