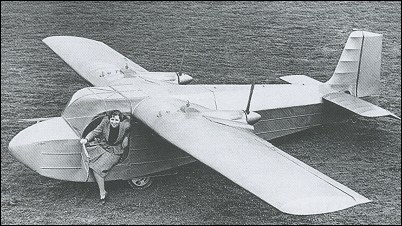

Carden-Baynes Bee

In 1935, Sir John Carden and L. E. Baynes designed a single-seat powered sailplane, known as the Scud, one example of which was built by Abbots-Baynes Aircraft Ltd at Farnham, Surrey. When the two designers founded the Carden-Baynes Aircraft Ltd at Heston, Middlesex in 1936, they embarked on another project, the ultralight Bee, flown on 3 April 1937. This was a side-by-side two-seater, powered by two 40hp Carden Ford SPI converted car engines driving pusher propellers. All activities ceased in the 1930s when Heston was requisitioned by the Air Ministry.

Comments
Barry, 05.04.2016 15:34

In December 1935 Sir John Carden was killed in an airliner crash. Leslie Baynes continued with development of the aircraft which took to the air on the 3rd April 1937 piloted by no less a figure than Hubert Broad. It was not an unqualified success and problems were experienced with over heating engines and instability on the ground due to a narrow track undercarriage and sluggish handling in the air. Whilst awaiting better engines amongst other things the business went into receivership and the Bee along with plans for a larger craft were purchased by the newly formed Scottish Aircraft Construction Company but that was that and the Bee was probably scrapped at Heston in 1939.

Span 29'10" Length 23'0" Wing area 141 square feet
Empty weight 880 lb Gross weight 1,350 lb
Estimated performance:
Max speed 110 mph Cruise speed 100 mph Range 300 miles
