| There is no text information for this aircraft at the moment.
| MODEL | 91 (wood) |
| ENGINE | 1 x 32hp Bristol Cherub I |
| WEIGHTS |
| Take-off weight | 395 kg | 871 lb |
| Empty weight | 227 kg | 500 lb |
| DIMENSIONS |
| Wingspan | 10.54 m | 35 ft 7 in |
| Length | 8.00 m | 26 ft 3 in |
| Height | 1.98 m | 7 ft 6 in |
| Wing area | 18.95 m2 | 203.98 sq ft |
| PERFORMANCE |
| Max. speed | 113 km/h | 70 mph |
| Range | 161 km | 100 miles |

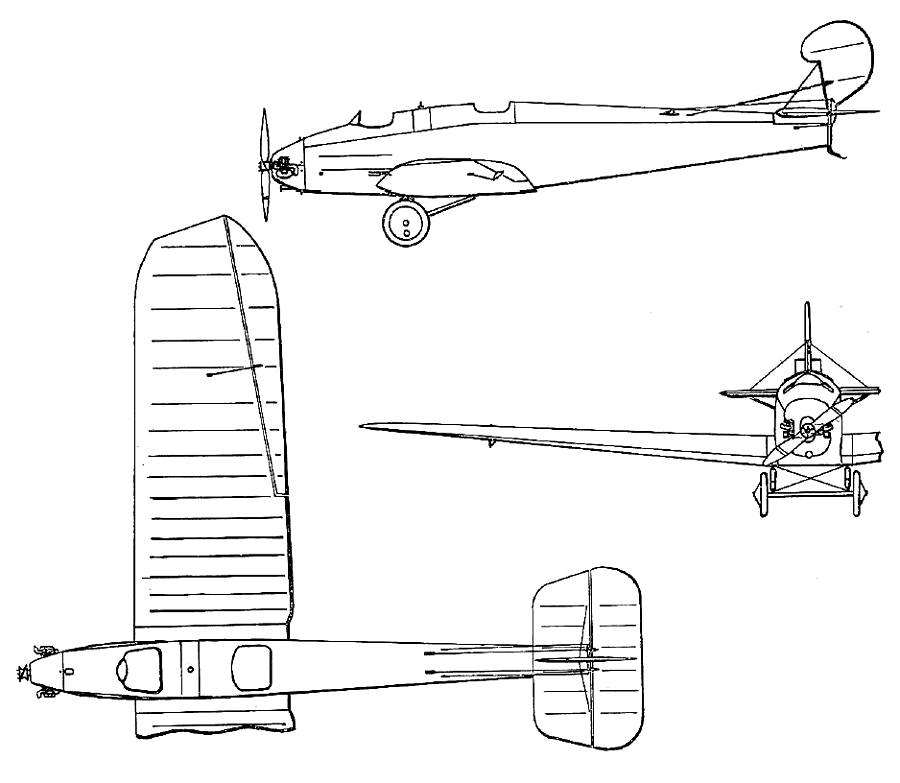

 | A three-view drawing of Brownie II Type 91B (900 x 783) |
| Simon, e-mail, 01.06.2013 20:34 Did you find any other photographs of the Bristol Brownie? reply | | Tom Castellano, e-mail, 07.10.2011 05:31 Are there any more photos of the this 1926 Bristol Brownie?
I am looking for any pictures or drawings showing the under carriage and rudder actuating mechanisiam.
Thsnk you. reply |
|
