Bristol Bagshot

1927

Back to the Virtual Aircraft Museum
  FIGHTERVirtual Aircraft Museum / United Kingdom / Bristol

Bristol Bagshot

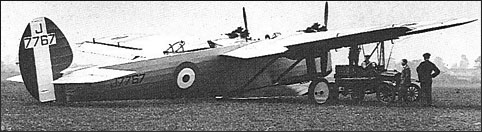

Specification 4/24 issued in 1924 called for a multi-seat twin-engined fighter capable of carrying two of the 37mm Coventry Ordnance Works (COW) cannon. To meet this requirement Frank Barnwell designed the radical Bagshot, the sole prototype of which was first flown on 15 July 1927. Powered by two 450hp Bristol Jupiter VI engines, the Bagshot had an unorthodox triangular- section, steel-tube, fabric-covered fuselage and a two-spar, shoulder-mounted wing with a steel primary structure. One 37mm COW gun was carried in an open nose turret and a similar weapon in a dorsal position, a Scarff-mounted 7.7mm Lewis being carried aft of the latter gun. The crew comprised pilot and two gunners. During flight trials it was discovered that aileron reversal resulting from wing torsional flexibility produced ineffective lateral control, and as it was concluded that the shortcomings of the aircraft could be eradicated only by virtually complete redesign, further flight trials with the Bagshot were abandoned.

3-View

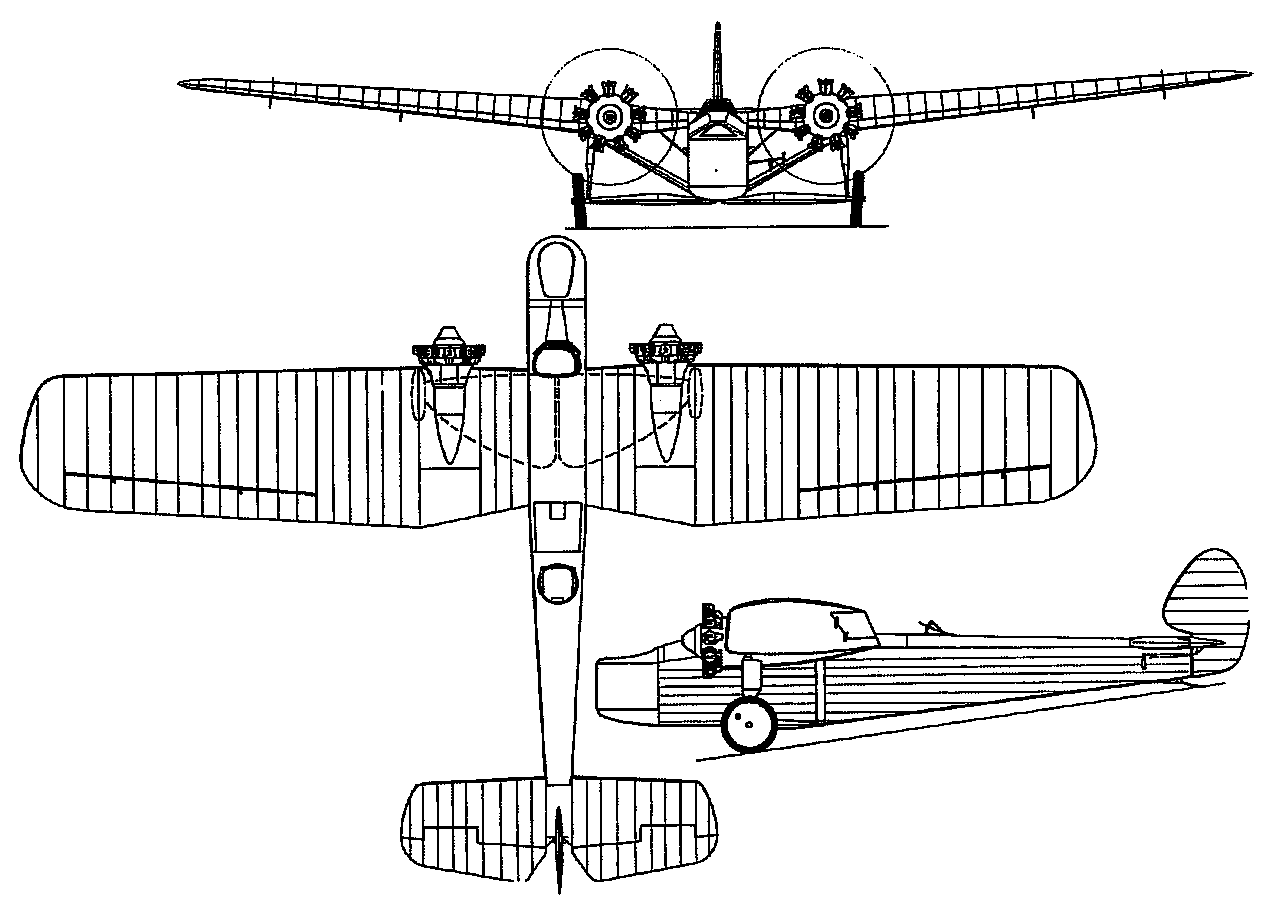

Bristol BagshotA three-view drawing (1280 x 914)

Specification
 WEIGHTS
  Take-off weight3717 kg8195 lb
  Empty weight2313 kg5099 lb
 DIMENSIONS
  Wingspan21.34 m70 ft 0 in
  Length13.69 m45 ft 11 in
  Height2.89 m10 ft 6 in
  Wing area78.04 m2840.01 sq ft
 PERFORMANCE
  Max. speed201 km/h125 mph
