Boulton-Paul P.3 Bobolink

1918

Back to the Virtual Aircraft Museum
  FIGHTERVirtual Aircraft Museum / United Kingdom / Boulton-Paul

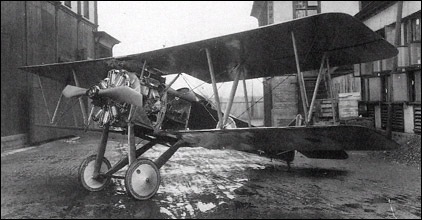

Boulton-Paul P.3 Bobolink

Although built only in prototype form, the Boulton & Paul P.3 Bobolink is worthy of mention as Boulton & Paul's first aeroplane. The company had manufactured wooden buildings at its Norwich factory, and during World War I built aircraft under sub-contract. Among the types produced were the FE.2b and Camel, and the Bobolink was the result of a design competition to find a Camel replacement.

The winner of the competition was the Sopwith Snipe, so the Boulton & Paul aircraft did not enter production; three serial numbers were allocated for the prototypes, but records suggest that only one was built. An interesting feature made it possible for the Bobolink's pilot to jettison its main fuel tanks in the event of an in-flight fire.

As might have been expected, the Bobolink had a number of similarities to the Camel, and its performance was comparable with that of the Snipe, but the latter was considered to be more suitable for mass production.

Boulton-Paul P.3 Bobolink

Specification
 ENGINE1 x Bentley B.R.2 rotary piston engine, 172kW
 WEIGHTS
  Take-off weight904 kg1993 lb
  Empty weight556 kg1226 lb
 DIMENSIONS
  Wingspan8.84 m29 ft 0 in
  Length6.10 m20 ft 0 in
  Height2.54 m8 ft 4 in
  Wing area24.71 m2265.98 sq ft
 PERFORMANCE
  Max. speed201 km/h125 mph

3-View

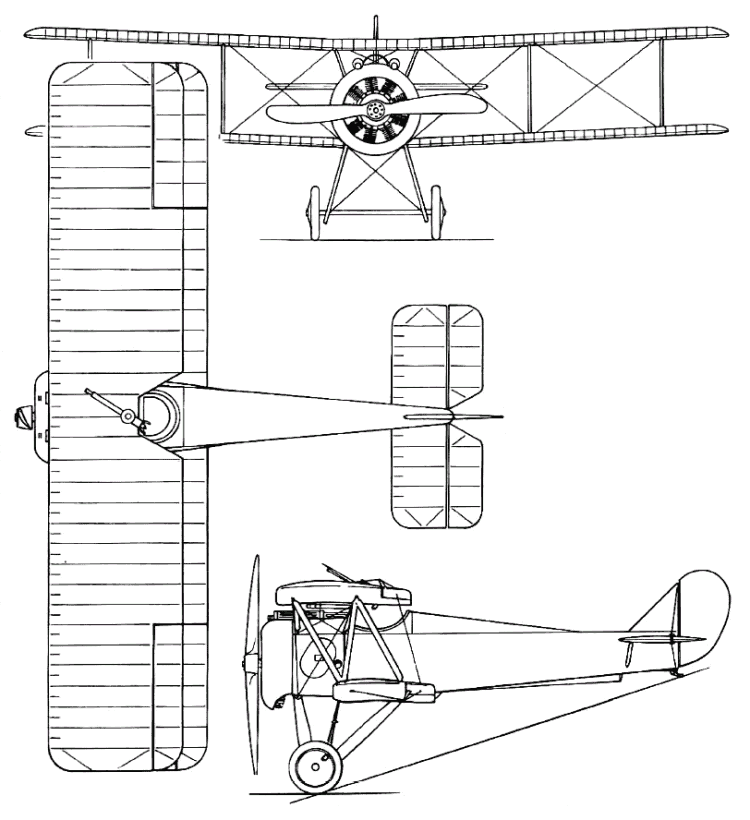

Boulton-Paul P.3 BobolinkA three-view drawing (750 x 820)
