| Designed for production in Japan. The first prototype flown on 28 December 1929.

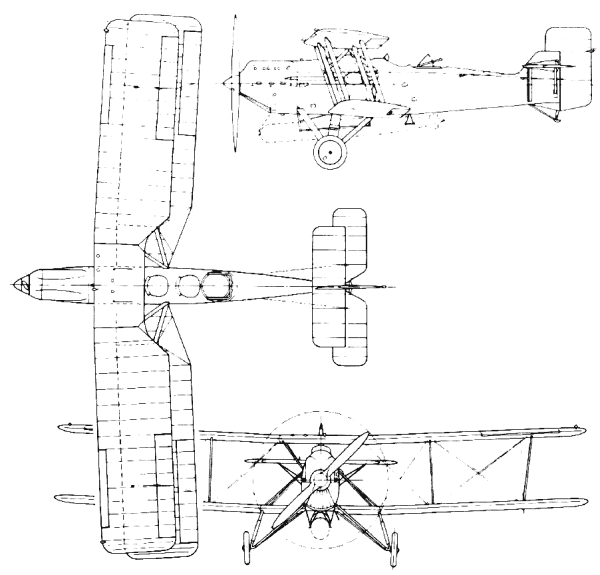

 | A three-view drawing (600 x 575) |
| CREW | 3 |
| ENGINE | 1 x 625hp Hispano-Suiza Type 51-12Lbr |
| WEIGHTS |
| Take-off weight | 3617 kg | 7974 lb |
| Empty weight | 1769 kg | 3900 lb |
| DIMENSIONS |
| Wingspan | 15.01 m | 49 ft 3 in |
| Length | 10.13 m | 33 ft 3 in |
| Height | 3.78 m | 12 ft 5 in |
| Wing area | 55.00 m2 | 592.01 sq ft |
| PERFORMANCE |
| Max. speed | 213 km/h | 132 mph |
| Ceiling | 3505 m | 11500 ft |
| Range | 628 km | 390 miles |
| ARMAMENT | 3 x 7.7mm machine-guns, 2 x 110kg bombs or a torpedo |
|
