Avro/BAe 146 / Avro RJ70, RJ85, RJ100

1981

Back to the Virtual Aircraft Museum
  PASSENGERVirtual Aircraft Museum / United Kingdom / British Aerospace

Avro RJ100

Originating in a Hawker Siddeley design of 1973 for a STOL-capable regional jet, the 146 took some years to come to market after Hawker Siddeley was absorbed in British Aerospace (BAe) in 1977. Produced in three marques, the largest 300 series carries up to 128 passengers. A total of 221 were built until 1994, when the design was re-engineered and renamed Avro and included more powerful Allied Signal LF 507 engines (the series designations RJ70, RJ85 and RJ100 replaced previous Bae 146-100, 200 and 300, respectively). A total of 166 Avro-liner examples were produced until 2001.

3-View

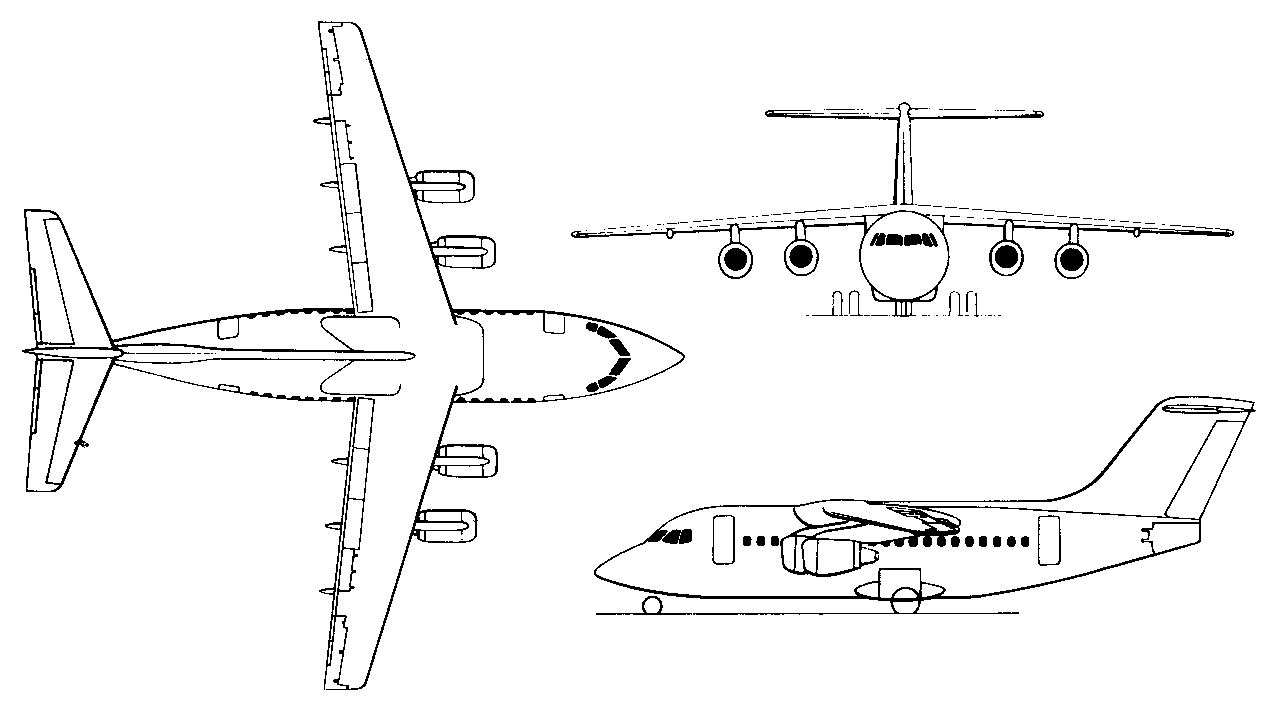

Avro RJ100A three-view drawing of Avro RJ100 (1276 x 706)

Specification
 MODELBAe 146 series 100
 CREW2
 PASSENGERS70
 ENGINE43 x 165kg Avco Lycoming ALF502R-3 or -5 turbofans
 WEIGHTS
  Take-off weight38102 kg84001 lb
 DIMENSIONS
  Wingspan26.21 m86 ft 0 in
  Length26.20 m86 ft 11 in
  Height8.61 m28 ft 3 in
 PERFORMANCE
  Max. speed767 km/h477 mph
  Range1631 km1013 miles

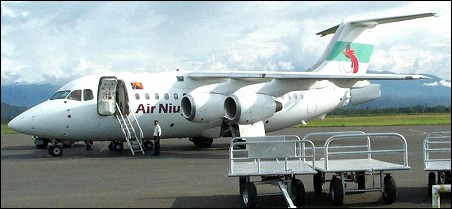

Avro RJ70

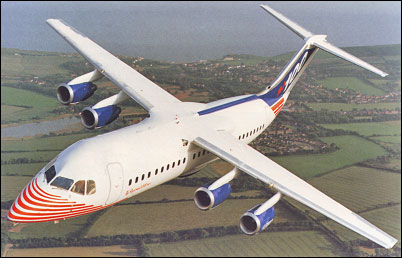

Avro RJ100

Comments
BABLU, e-mail, 27.09.2017 21:02

dear sir
i am interested to have a lease plane,BAe 146.please contact.
regards
bablu

reply

Marco Antonio Duran Landaeta, e-mail, 30.03.2016 19:33

Hello
We urgently need 3 x RJ85 YOM more than in 1998 (100 or more) for long-term lease on the basis ACMI / SECO - with option to buy
Base A / C: Bolivia - South America
Contract length: Min 2 Year
Path: Domestic and some international route near
awaiting your urgent response last antonio
md aircraft

reply

Antonio Oliveira, e-mail, 07.01.2015 20:50

Gday!
No, but I have a question.
In FSX, how to calculate specifically for this aircraft the cruising altitude? Say, 250 miles trip, 400, 800? Reach as highest as possible having in mind the ceiling? Follow the airways and what FS flight planner says?
Thanks for hearing!

reply

Don Mack, e-mail, 01.03.2014 06:30

Anyone knowing of an RJ in the USA...please advise. Thanks.

reply

ESSAM EL SHABRAWI, e-mail, 21.10.2012 13:30

we are following for RJ 100 OR 85 FOR DRY LEASE NOT OLDER THAN 20 YEARS OLD

reply

John Curran, e-mail, 01.07.2012 01:59

Hi I worked with Alan at Air UK and I really miss the 146's breaks my heart seeing them being brought to inflite at Stansted to be sent to be sold or broken up.

reply

Barry, 25.11.2011 18:22

The original design was from DeHavilland. The sequence 146 is a DeHavilland design, and the initial design and manufacture was at their factory in Hatfield. After the plane had reached an early stage of development the design was shelved, as Hawker Siddley (who owned De Havilland)felt that the "market conditions were not right". Eventually production was started, by that time under the auspices of British Aerospace. The production was moved to Woodford and when the improved RJ models were developed they took the Avro "monicker", much to the chagrin of the former DeHavilland employees.
Contrary, to what is said elsewhere this is a quiet, effective aeroplane with very good short field performance, as can be proved by their frequent use in and out of city airports like London City.

reply

Alan Greenwood, e-mail, 09.06.2011 14:21

Great Aeroplane.....worked on the 100 /200 and 300 series with Air UK.

reply

P H, e-mail, 21.01.2011 13:22

It would be appropriate to mention that the very first BAe 146 operator was Dan Air Services (UK) and who took delivery of the first of several 146's on 23 May 1983.

reply

aceguy, e-mail, 25.12.2010 17:03

do u have any idea of used aircraft is the for sale or not what will be cost of it pls let me know

reply

John Hancocks, e-mail, 15.05.2010 06:21

Strange aircraft - flew in one on the Sydney /Brisbane leg. Earned a bad reputation here, passenger /crew complaints of toxic fumes in the cabin - there seems to have been some substance to these.

reply

Scott Boyd, e-mail, 12.04.2010 07:08

We used to have 146's at Westair, until Mesa bought us. They got rid of them and a year later bought Canadairs for Mesa. They also took away our flying in the Northwest, because we woudn't take pay cuts and in 1998 did away with Westair altogether.

reply

VINEET BANSAL, e-mail, 19.02.2009 04:27

Hey! I am a first officer on RJ -70. I am looking for an aircraft model of RJ . So can you let me know about it ,i m in melbourne til 25th of feb .

reply

Mike S., e-mail, 01.05.2008 03:52

I have some 13,000 hrs in this type. A real pilots bird.
What a great way to fly.

reply
