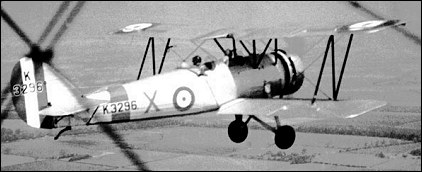

Avro 621 Tutor

The original Avro Trainer of 1929 was designed as a replacement for the Avro 504N and featured a welded steel-tube structure and a 115kW Armstrong Siddeley Mongoose IIIA radial engine. Twenty-two were built for the RAF and three for the Irish Army Air Corps. Following evaluation Avro began mass production of the 621 for the RAF under the new name of Tutor. It eventually completed more than 390, including 14 Sea Tutors with long single-step Alclad floats. The structure of the Sea Tutor was specially treated against corrosion by sea water; a metal propeller and hand-turning gear were also standard. Because the latter features were desirable for a seaplane but not a landplane, the Sea Tutor was one of the few types of seaplane that could not be converted into landplane form. Power plant was a 160kW Lynx engine. In addition, numbers of Tutors were delivered to Denmark, Greece, Poland and South Africa, plus others for civil use. A further 57 were built under licence in South Africa for the air force and a very small number in Denmark for the navy.

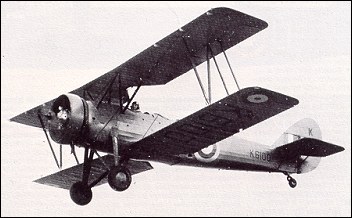

Avro 621 Tutor

Specification
 ENGINE1 x Armstrong Siddeley Lynx IVC, 179kW
 WEIGHTS
  Take-off weight1115 kg2458 lb
  Empty weight839 kg1850 lb
 DIMENSIONS
  Wingspan10.36 m34 ft 0 in
  Length8.08 m27 ft 6 in
  Height2.92 m10 ft 7 in
  Wing area27.96 m2300.96 sq ft
 PERFORMANCE
  Max. speed196 km/h122 mph
  Cruise speed169 km/h105 mph
  Ceiling4940 m16200 ft
  Range402 km250 miles

Avro 621 Tutor

Comments
alan ruff, e-mail, 25.10.2011 21:41

I would like details of the cockpit layout and flying wires,also colour schemes. I am building a 1 /5th scale RC model but have no information on these items.

reply

Dannyboy, 26.04.2011 12:00

The best looking bi-plane of the era, in my opinion

reply

dave myers, e-mail, 17.11.2009 00:35

am researching the avro 504n seaplane w /single main float and tip floats with a 5cyl. radial piston engine.anyone seen one

reply
