| There is no text information for this aircraft at the moment.
| ENGINE | 1 x 38hp Blackburne Thrush |
| WEIGHTS |
| Take-off weight | 477 kg | 1052 lb |
| Empty weight | 275 kg | 606 lb |
| DIMENSIONS |
| Wingspan | 9.17 m | 30 ft 1 in |
| Length | 7.32 m | 24 ft 0 in |
| Height | 2.74 m | 9 ft 0 in |
| Wing area | 22.85 m2 | 245.96 sq ft |
| PERFORMANCE |
| Max. speed | 121 km/h | 75 mph |

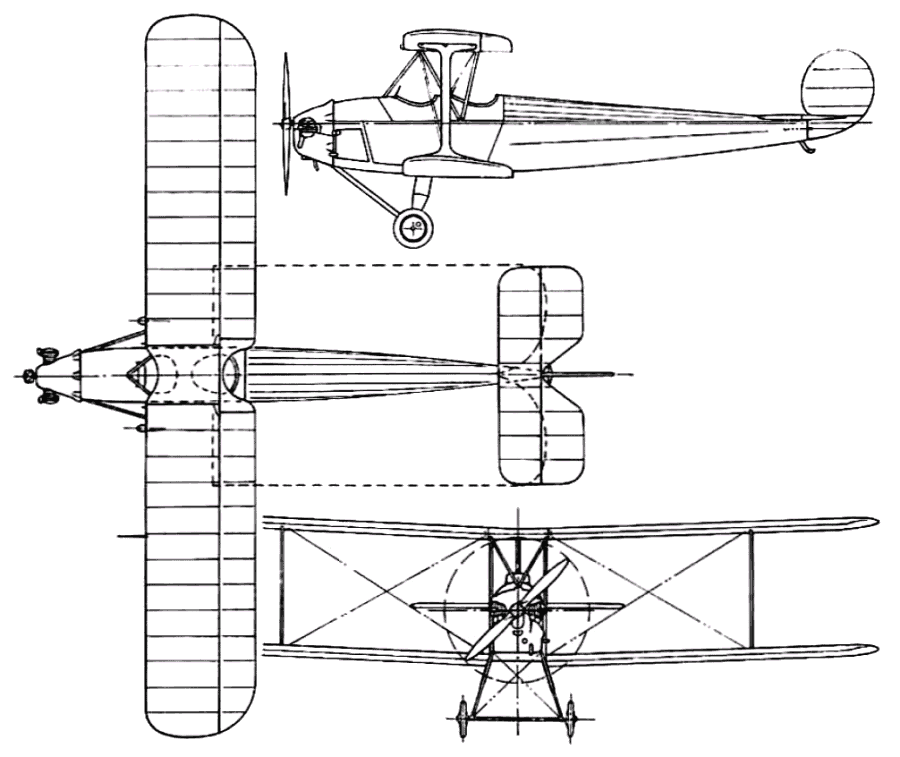

 | A three-view drawing (900 x 757) |

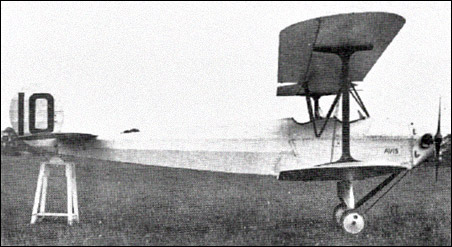

| Derry Belcher, e-mail, 25.11.2016 22:37 Seems that of the two aircraft built, the one with number 10 on the tail had control surfaces on the upper wing and lower wing while the second aircraft only had lower wing control surfaces.
I wonder if the second aircraft also left out the mechanism (as shown in The Flight magazine Sept 1924)for using the full span ailerons as flaps? reply | | D Belcher, e-mail, 02.09.2011 10:46 I also have a 1 /12th flying scale-model that was based on a free-flight plan but I redesigned the structure to take the higher loadings of electric-power, miniature radio gear and aerobatics, with fully functional controls including flapperons. It is a real treat to watch in flight and I get a kick out of keeping a bit of history alive, even if it is only in miniature. reply | | B Hanshaw, 31.05.2011 17:43 I have built a one inch to foot flying model of the. Avro avis. Model has been flying in scale contest for five years flys very well reply | | Julius Vi, 16.05.2010 15:14 You can measure it in the drawing. If you would like to make a model for this, just take it's diameter as 1.594m, o 1.6m :)
I think that accuracy would be enough reply | |
| | James Sheridan, e-mail, 24.01.2010 00:21 Would you know the diameter of the prop on this aircraft ?
Regards Jim reply |
|
