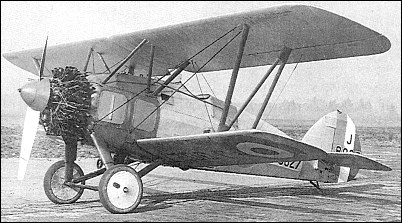

Armstrong Whitworth A.W.14 Starling

Designed by J Lloyd to meet the requirements of Air Ministry specification F.9/26, the A.W.14 Starling was a staggered biplane with wings of unequal span and chord. It featured a fabric-covered rectangular-section steel-tube fuselage, and wings of mixed construction consisting of steel spars, wooden ribs and fabric skinning. Two prototypes were ordered, the first of these flying on 19 May 1927 with an uncowled 385hp Armstrong Siddeley Jaguar VII two-row 14-cylinder radial, this later being replaced by a supercharged Jaguar IV rated at 410hp at 2745m and enclosed by a Townend ring cowling. Armament comprised two 7.7mm Vickers Mk II machine guns. The characteristics of the Starling proved disappointing, and the second prototype was abandoned in favour of an entirely new design known as the Starling II.

3-View

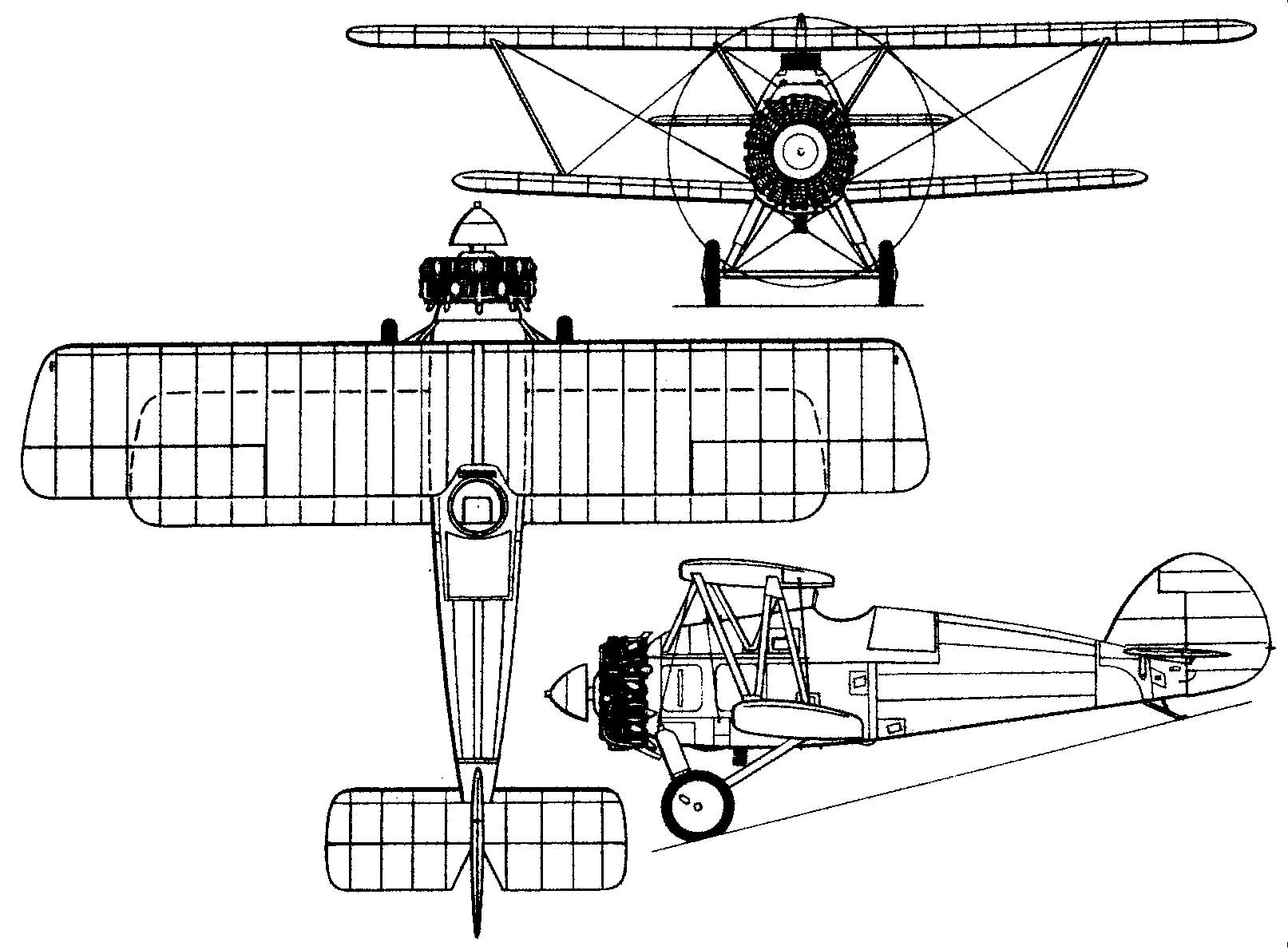

Armstrong Whitworth A.W.14 StarlingA three-view drawing (1613 x 1190)

Specification
 WEIGHTS
  Take-off weight1404 kg3095 lb
  Empty weight934 kg2059 lb
 DIMENSIONS
  Wingspan9.55 m31 ft 4 in
  Length7.67 m25 ft 2 in
  Height3.20 m11 ft 6 in
  Wing area22.89 m2246.39 sq ft
 PERFORMANCE
  Max. speed286 km/h178 mph
