Avia B 35

1938

Back to the Virtual Aircraft Museum
  FIGHTERVirtual Aircraft Museum / Czechoslovakia / Avia

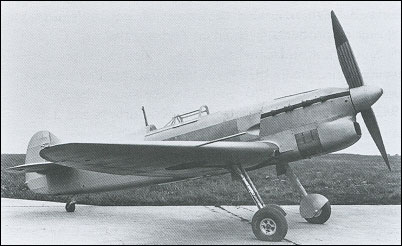

Avia B 35

To provide a potential successor to the B 534 in service with the Czechoslovak air arm, the Ministry of National Defence prepared an outline requirement for a singleseat fighter monoplane in late 1935. To meet this requirement, Ing Frantisek Novotny designed the B 35 for which a two-prototype contract was awarded in 1936. The B 35 was of mixed construction, with wooden wings covered by plywood bonded to an outer duralumin skin - a stressed skinning similar to Plymax that was being used for the Morane-Saulnier MS 405 - and a welded steel-tube fuselage with duralumin panelling forward and fabric skinning aft. With an HS 12Ydrs rated at 860hp at 4000m, the first prototype, the B 35.1, flew on 28 September 1938. It was re-engined with an HS 12 Ycrs which, similarly rated to the Ydrs, made provision for a 20mm cannon in the Vee of the cylinders, but it crashed on 21 November, being replaced in the test programme on 30 December 1938 by the second prototype, the B 35.2. This featured some increase in fuselage cross section, smaller ailerons and extended flaps. Work continued after the German annexation of Bohemia and Moravia, a third prototype, the B 35.3, flying on 26 June 1939. This had a retractable undercarriage, a non-elliptical wing leading edge and an armament of one 20mm cannon and two 7.92mm machine guns. Prior to the commencement of flight test, the B 35.3 was exhibited at the Salon de l'Aeronautique in Brussels as the Avia 135.

3-View

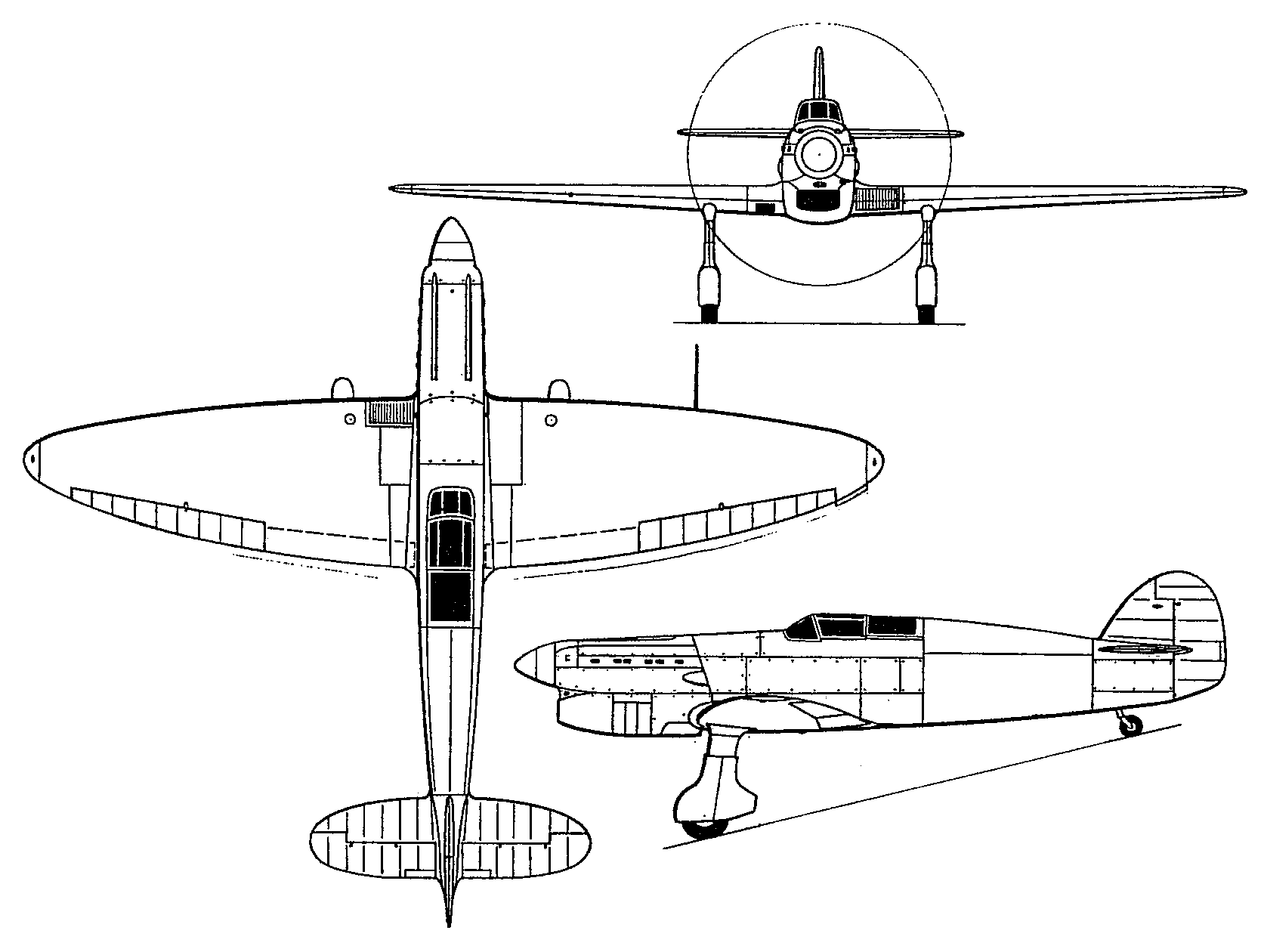

Avia B 35A three-view drawing (1673 x 1260)

Specification
 MODELB-35
 CREW1
 ENGINE1 x 860hp Hispano-Suiza 12Ycrs
 WEIGHTS
  Take-off weight2200 kg4850 lb
  Empty weight1690 kg3726 lb
 DIMENSIONS
  Wingspan10.25 m34 ft 8 in
  Length8.50 m28 ft 11 in
  Height2.60 m9 ft 6 in
  Wing area17.23 m2185.46 sq ft
 PERFORMANCE
  Max. speed485 km/h301 mph
  Cruise speed344 km/h214 mph
  Ceiling8200 m26900 ft
  Range610 km379 miles
 ARMAMENT1 x 20mm
