Phönix D.I / D.II / D.III

1917


FIGHTER	Virtual Aircraft Museum / Austria / Phoenix

Appearing soon after the C.I, the prototype D.I single-seat fighter biplane bore little similarity to the reconnaissance aircraft and first flew with a 149kW Austro-Daimler engine installed. The two initial production versions entered service with the air arm and navy the same year as the D.I and D.II (balanced elevators), each powered by the 149kW Hiero engine and armed with two Schwarzlose machine-guns. Maximum speed was good, but the fighters had two faults - neither critical but nevertheless undesirable - being over-stable and structurally on the weak side.

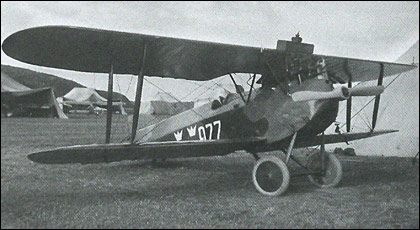

As manoeuvrability was the very life-blood of fighters of 1917-18, a new version was produced in 1918 as the Type 9 or D.III which featured ailerons on all wings and was powered by a 171kW Hiero engine. The first of 158 built was supplied on 15 March 1918 and the last on 4 November 1918. It was undoubtedly the stability of the Phönix rather than its speed that led to a number of the earlier versions being used as photographic-reconnaissance aircraft. A number of D.Ills found their way into Swedish service after the war.

Specification

MODEL	D.I
ENGINE	1 x Hiero, 149kW
WEIGHTS
Take-off weight	805 kg	1775 lb
DIMENSIONS
Wingspan	9.75 m	32 ft 0 in
Length	6.65 m	22 ft 10 in
Height	2.8 m	9 ft 2 in
PERFORMANCE
Max. speed	180 km/h	112 mph
Ceiling	6000 m	19700 ft
ARMAMENT	2 x 8.8mm machine-guns

Comments

Barry, 02.10.2012 13:34

A DIII is on display at the Flygvapen Museum at Linkoping Sweden.

paidui, e-mail, 18.06.2011 06:27

I would like to have a copy one of the airplanes.
Could I buy a copy from you

lxbfYeaa, e-mail, 14.03.2024

paidui

Dennis Henson, e-mail, 18.01.2010 02:51
I would like to have a copy one of the airplanes.
Could I buy a copy from you?

Dennis
reply
Mag. Heinz A. Linner, e-mail, 27.12.2008 17:48
1978 build I and Mr. Anton Ott a Ph�nix D I in fl. /con. The a /c is now in Hungary. 2009 I will build a D II in fl. /con. (the bird from my grandoncle Korp. Feldpilot Karl Linner). I have the orig.drw. from all the types of Ph�nix (D I, D II, D IIa, D III, C I). Greetings Heinz Linner
reply

Richard Brinkeback, e-mail, 30.10.2020

Mag. Heinz A. Linner

Hello Heinz

Would it be possible to buy a copy of your D III and C I orig.drw. I am a Swedish collector and would love to buy those drawings.

Greetings
Richard Brinkeback

John Fitz, e-mail, 16.10.2020

Mag. Heinz A. Linner

Sir, would it be possible to have a copy of the original Phonix D.1 drawings? I am building. 1 /3 scale model using Mr. Hurrell’s model plans but I would really appreciate having a copy of the originals as a reference. I will be happy to send you photos of my model in its current state. Thanks for your consideration.

H. Linner, 05.05.2022

John Fitz

Grundsätzlich sind Kopie der Originalplände des D I möglich. Die Kosten liegen bei ca 4000.- Euro, ca. 106 Pläne, Kopierzeit ca. 3-4 Monate. Pläne sind Blaupausen, negativ kopiert, d.h. dunkle Linien auf hellen Grund.

Peter, e-mail, 10.04.2021

Richard Brinkeback

Hello! Did you receive drawings for Albatros C.III, if I may ask? I am looking for these as well. All the best!

Peter
